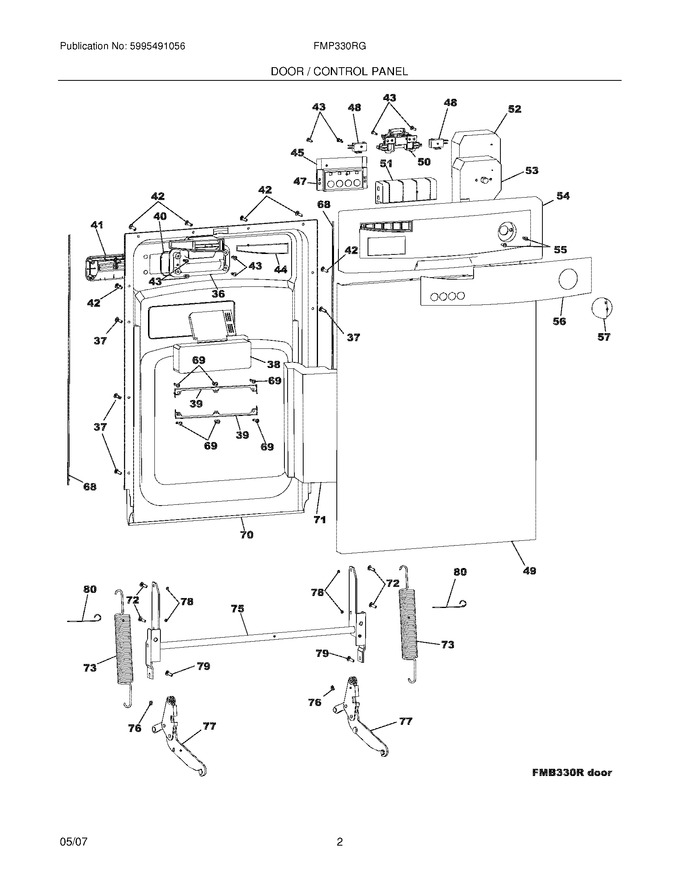

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
36	5304460909		Vent Assembly,door		Appelez-nous	-
37	5304460910		Screw,tapping ,st3.5 X 13 ,(6)		Appelez-nous	-
39	5304460912		Bracket,dispenser ,(2)		Appelez-nous	-
40	5304460913		Gasket,door Vent ,inner Door				$ 12.62
41	5304460914		Cover,door Vent				$ 26.64
42	5304460915		Screw,tapping ,st3.5 X 18 ,(6)		Appelez-nous	-
43	5304460916		Screw,pan Hd, Tapping ,st4 X 12 ,(8)		Appelez-nous	-
44	5304460917		Gasket,door Vent ,outer Door		Appelez-nous	-
45	5304460918		Guard,tap Switch ,film		Appelez-nous	-
49	5304460921		Door Panel,outer ,black		Appelez-nous	-
51	5304460924		Cover,handle ,black				$ 25.99
52	5304460926		Guard,timer ,film				$ 25.39
54	5304460929		Panel,console ,black				$ 113.14
55	5304460930		Screw,hex Hd, Tapping ,st5 X 12 ,(6)		Appelez-nous	-
56	5304460928		Overlay,console ,black				$ 110.34
57	5304460934		Knob,timer ,black				$ 32.23
68	5304460936		Guard,door Edge ,black ,(2)		Appelez-nous	-
69	5304460938		Screw,tapping ,m3.9 X 12 ,(6)		Appelez-nous	-
70	5304460939		Liner,door ,inner				$ 285.14
71	5304460940		Insullation,door ,polystyrene		Appelez-nous	-
72	5304460941		Screw,m5 X 10 ,(4)				$ 9.56
73	5304460942		Spring,door ,(2)				$ 29.03
75	5304460943		Hinge Assembly,door				$ 51.56
76	5304460944		Clamp,hinge Pin ,(2)				$ 5.15
77	5304460945		Hinge,arm ,(2)				$ 46.49
78	5304460946		Nut,lock ,m5 ,(4)				$ 7.56
79	5304460947		Pin,hinge ,(2)				$ 3.26
80	5304460948		Bolt,door Spring ,(2)				$ 11.08
F38	5304460911		Dispenser Assembly				$ 263.33
F47	5304460919		Switch,4 Button ,tap				$ 114.62
F48	5304460920		Switch,door Latch ,(2)				$ 46.79
F50	5304535183		Latch,door   (Replaces: 5304460923)			Immediately	$ 16.22
F53	5304460927		Timer Assembly				$ 173.99
NI	5304461809		Energy Guide		Appelez-nous	-
