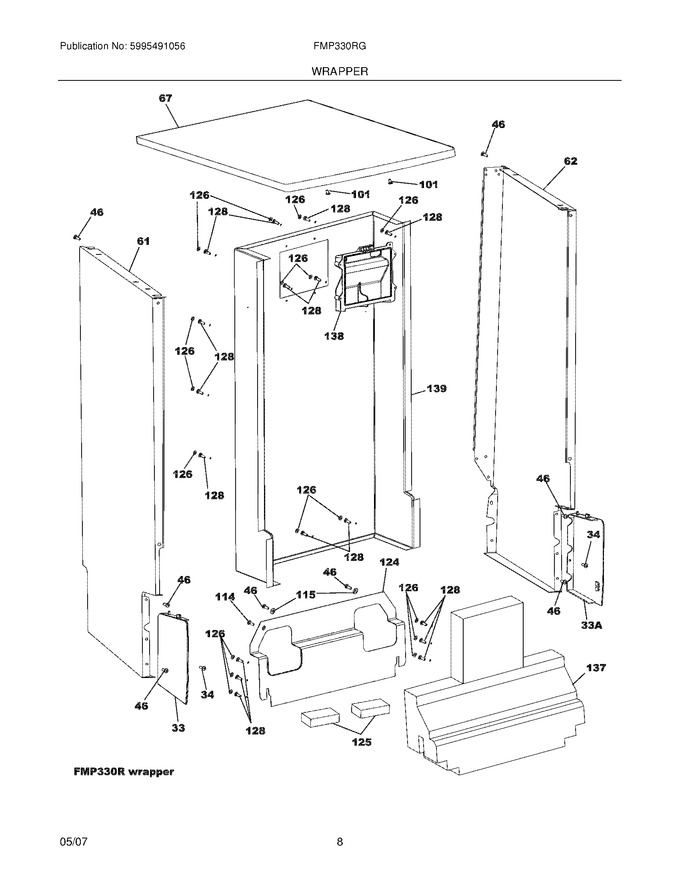

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	5304461762		Baseboard,lh ,black		Appelez-nous	-
34	5304461765		Screw,tapping ,st3.5 X 9 ,(30)		Appelez-nous	-
46	5304461768		Screw,m3.5 X 9 ,(10)		Appelez-nous	-
61	5304461774		Panel,side ,black ,lh		Appelez-nous	-
62	5304461776		Panel,side ,black ,rh		Appelez-nous	-
67	5304461781		Panel,top ,black		Appelez-nous	-
101	5304461783		Screw,cnsk Hd ,m4 X 20 ,(2)		Appelez-nous	-
114	5304461785		Screw,m4 X 10		Appelez-nous	-
115	5304461786		Washer,(2)		Appelez-nous	-
124	5304461787		Crosspiece,rear ,lower		Appelez-nous	-
125	5304461788		Bracket,crosspiece ,(2)		Appelez-nous	-
126	5304461790		Cover,screw ,black ,(26)		Appelez-nous	-
128	5304461791		Screw,st3.5 X 9 ,(28)		Appelez-nous	-
137	5304461799		Weight		Appelez-nous	-
138	5304461800		Housing,adapter		Appelez-nous	-
139	5304461802		Cover,back ,black		Appelez-nous	-
33A	5304461764		Baseboard,rh ,black		Appelez-nous	-
