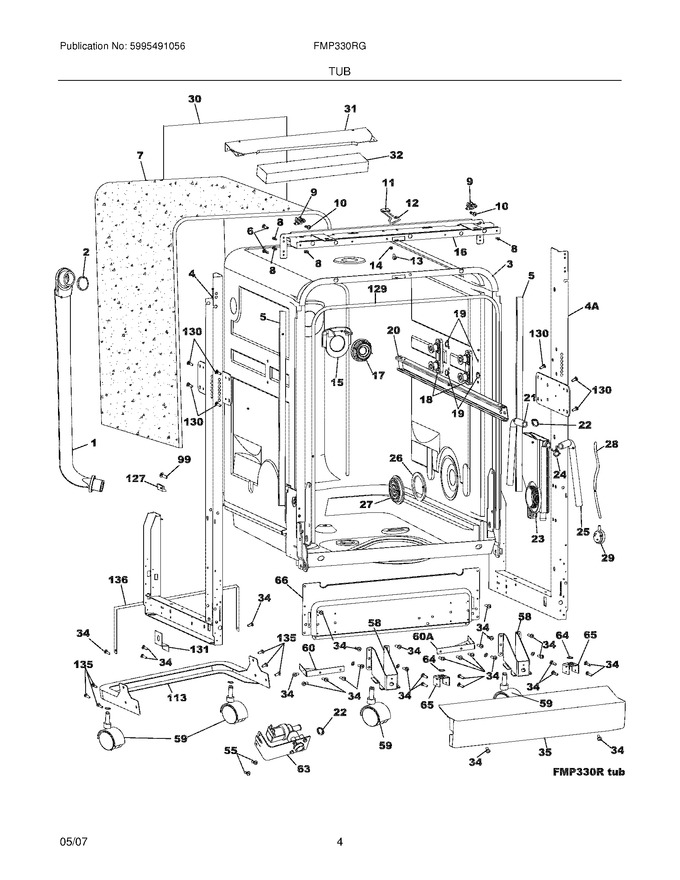

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304512881		Hose,delivery ,external   (Replaces: 5304460949)				$ 53.50
2	5304460950		O-ring,delivery Hose				$ 11.45
3	5304460951		Tub Assembly		Appelez-nous	-
4	5304461753		Frame,tub ,lh		Appelez-nous	-
5	5304460954		Guard,tub Gasket ,black ,(2)		Appelez-nous	-
6	5304460955		Screw,tapping ,st3.5 X 9 ,(26)		Appelez-nous	-
7	5304460956		Insulation,tub Wrapper ,outer				$ 39.11
8	5304460957		Rivet,(6)		Appelez-nous	-
9	5304461755		Block,tub ,(2)		Appelez-nous	-
10	5304460959		Screw,tapping ,st3.5 X 11 ,(2)		Appelez-nous	-
11	5304460960		Bracket,door Hook Mtg				$ 7.09
12	5304460961		Hook,door Lock				$ 12.50
13	5304460962		Screw,hook Mtg ,m4 X 16				$ 11.77
14	5304460963		Nut,hook Mtg ,m4 ,lock				$ 6.93
15	5304460964		Housing,delivery Hose ,inner				$ 12.02
16	5304461757		Crosspiece,front ,black ,upper		Appelez-nous	-
17	5304460965		Nut,delivery Hose ,inner				$ 22.16
18	5304460966		Roller Assembly,tub ,(4)				$ 44.46
19	5304460967		O-ring,tub Roller ,(8)				$ 8.18
20	5304460968		Rail,guide ,upper Rack ,(2)				$ 50.40
21	5304460969		Hose,drain Pump				$ 19.36
22	5304460970		Clamp,hose ,otk175 ,(5)				$ 13.46
23	5304460971		Tunnel,water		Appelez-nous	-
24	5304460972		Clamp,hose ,14.9 X 1.8				$ 5.30
25	5304460973		Hose,inlet ,water Tunnel		Appelez-nous	-
26	5304482394		Gasket,ring Nut   (Replaces: 5304460974)			Immediately	$ 13.74
27	5304460975		Nut,ring				$ 8.34
28	5304460976		Tubing,pressure Switch		Appelez-nous	-
30	5304461758		Board,back		Appelez-nous	-
31	5304461759		Crosspiece,rear ,upper		Appelez-nous	-
32	5304461760		Pad,crosspiece		Appelez-nous	-
33	5304461719		Toe Grille,adjustable ,black				$ 41.95
34	5304461765		Screw,tapping ,st3.5 X 9 ,(30)		Appelez-nous	-
35	5304461767		Kickplate,black		Appelez-nous	-
55	5304460930		Screw,hex Hd, Tapping ,st5 X 12 ,(6)		Appelez-nous	-
58	5304461769		Bracket,wheel ,(2)		Appelez-nous	-
59	5304461770		Wheel,(4)				$ 17.69
60	5304461771		Bracket,reinforce ,lh		Appelez-nous	-
64	5304461777		Ring,clamping ,no.8 ,(4)				$ 0.76
65	5304461778		Bracket,n ,(2)		Appelez-nous	-
66	5304461779		Crosspiece,front ,lower		Appelez-nous	-
99	5304460984		Screw,m6 X 12 ,(3)		Appelez-nous	-
112	5304460985		Bracket,motor Support		Appelez-nous	-
113	5304461784		Bracket,rear Frame		Appelez-nous	-
127	5304460986		Block,tub Gasket ,(2)				$ 10.97
129	5304512895		Gasket,tub   (Replaces: 5304460987)			Immediately	$ 53.91
130	5304460988		Screw,hex Hd, Tapping ,st5 X 20 ,(8)				$ 8.09
131	5304461793		Bracket		Appelez-nous	-
135	5304461797		Screw,pan Hd ,st5.8 X 13 ,(6)		Appelez-nous	-
136	5304461798		Band,metal		Appelez-nous	-
4A	5304461754		Frame,tub ,rh		Appelez-nous	-
60A	5304461772		Bracket,reinforce ,rh		Appelez-nous	-
F29	5304460977		Switch,pressure				$ 92.52
F63	5304460982		Valve,water Inlet				$ 106.49
