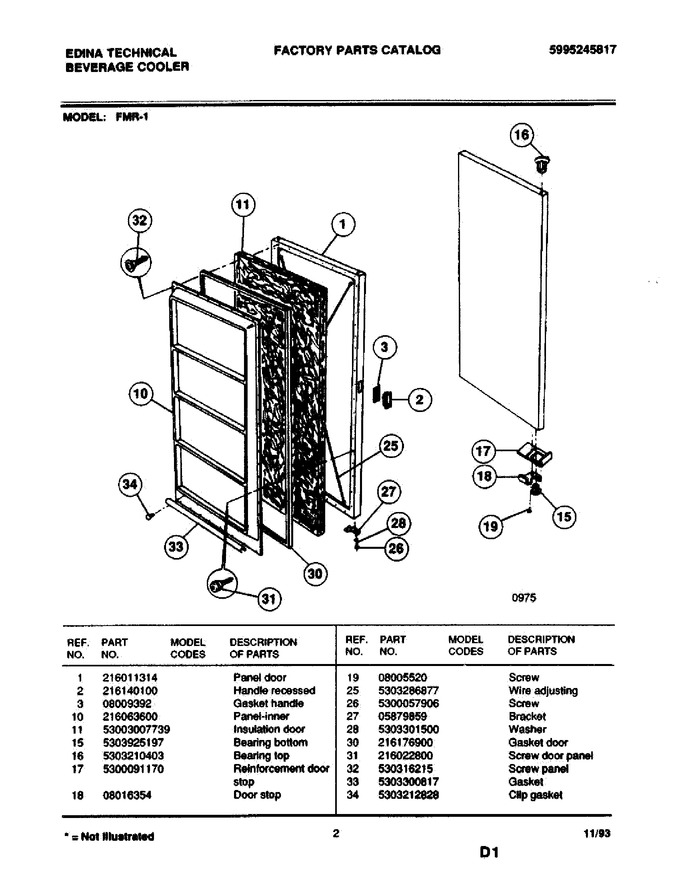

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011314		Panel Door		Appelez-nous	-
2	216140100		Handle		Appelez-nous	-
3	08009392		Gasket Handle		Appelez-nous	-
10	216063600		Panel Inner		Appelez-nous	-
11	53003007739		Insulation Door		Appelez-nous	-
15	5303925197		Bearing-bottom				$ 23.73
16	5303210403		Bearing-top		Appelez-nous	-
17	5300091170		Reinforcement-door		Appelez-nous	-
18	08016354		Door Stop				$ 36.07
19	08005520		Screw-door Stop		Appelez-nous	-
25	5303286877		Wire Adjusting		Appelez-nous	-
26	5300057906		Screw		Appelez-nous	-
27	05879859		Bracket		Appelez-nous	-
28	5303301500		Washer, Sealing		Appelez-nous	-
30	216176900		Gasket-door,black		Appelez-nous	-
31	216022800		Screw-panel		Appelez-nous	-
32	530316215		Screw Door Panel		Appelez-nous	-
33	5303300817		Gasket		Appelez-nous	-
34	5303212828		Clip Gasket				$ 16.63

    View Diagram in Separate Window       Print Part List
