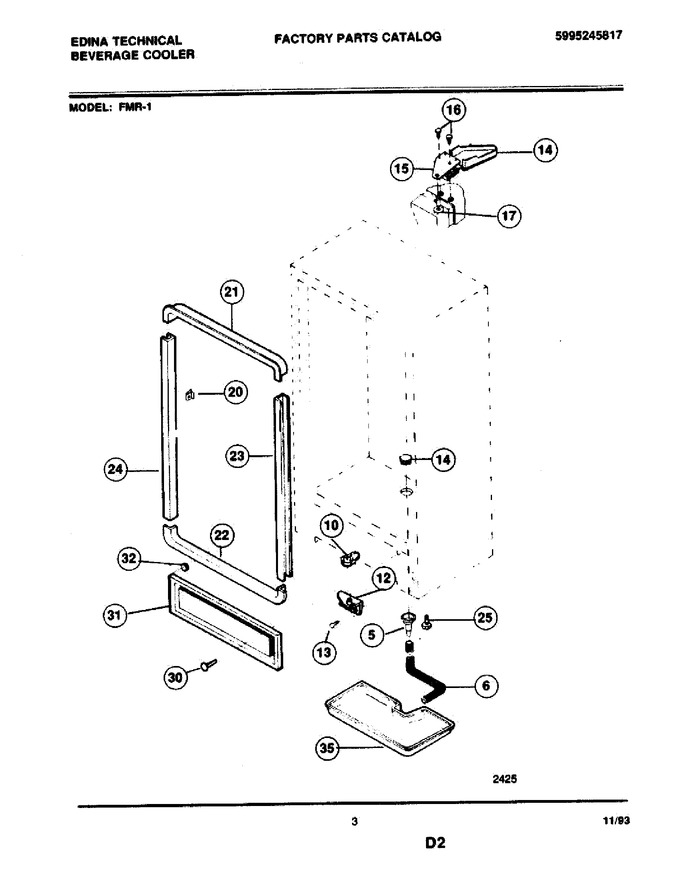

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
5	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
6	08037416		Hose, Drain		Appelez-nous	-
10	5303210424		Ramp, Door Closer		Appelez-nous	-
12	5303210383		Hinge, Bottom		Appelez-nous	-
13	08005520		Screw-door Stop		Appelez-nous	-
14	5303276520		Cover-hinge		Appelez-nous	-
15	5303212935		Hinge, Top		Appelez-nous	-
16	5303212937		Screw-top Hinge-front		Appelez-nous	-
17	5303294372		Nut Insert				$ 43.68
20	06594680		Clip, Breaker		Appelez-nous	-
21	216073300		Breaker Top		Appelez-nous	-
22	216073200		Breaker Bottom		Appelez-nous	-
23	216108400		Breaker-hinge		Appelez-nous	-
24	216108500		Breaker-lock Side		Appelez-nous	-
25	216218100		Leveling Leg				$ 25.25
30	5309950066		Pin Fastener		Appelez-nous	-
31	5303301499		Panel-toe Plate		Appelez-nous	-
32	5300118003		Bumper		Appelez-nous	-
35	5308016387		Pan-defrost		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
