Diagram # Part Number Description Series Availability Ships Price Add to Cart
5 5303305677 Drier   (Replaces: 5308000027) In-Stock Immediately $ 31.67

10 216498900 Grommet   (Replaces: 5308002681) Special Order $ 13.01

11 5306594529 Sleeve Special Order $ 10.34

12 5303272328 Screw Special Order $ 10.34

13 216156200 Compressor,w/o Electricals Appelez-nous -
14 5303200838 Relay & Overload Appelez-nous -
16 216200500 Cover,relay Appelez-nous -
20 5300123788 Condenser Special Order $ 635.80

25 06594651 Wire, Ground Appelez-nous -
26 08037851 Screw-ground Special Order $ 3.57

29 08016777 Clamp, Pwr Cord Assy Appelez-nous -
30 5303301498 Harness-electrical Appelez-nous -
35 3200802 Control Temp Appelez-nous -
36 5303301497 Wire,ground Appelez-nous -
37 5303208622 Clip Grounding Appelez-nous -
38 08003539 Screw Control To Bracket Appelez-nous -
39 216010301 Brkt Cold Control Appelez-nous -

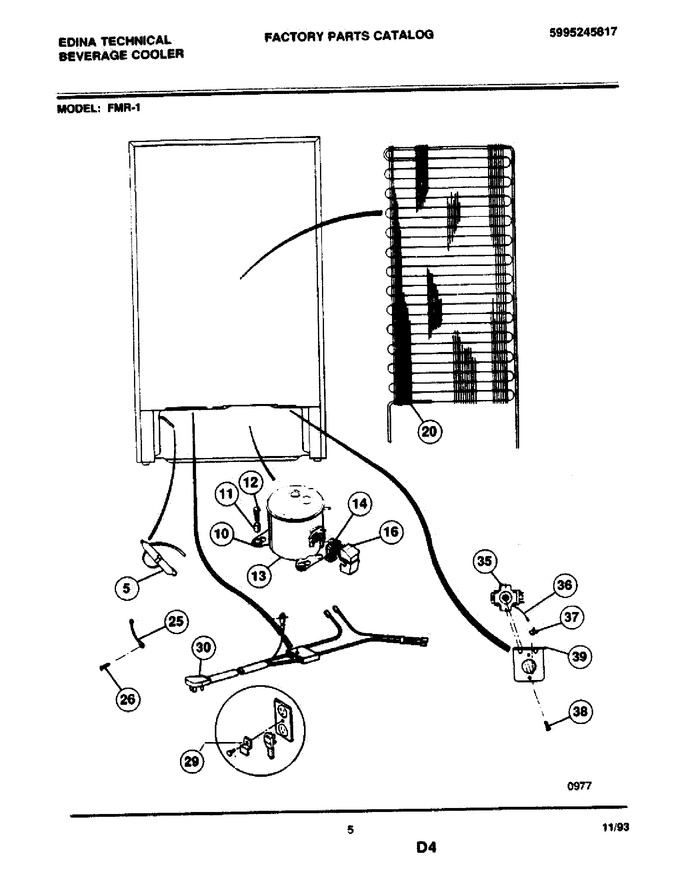

    View Diagram in Separate Window     Print Icon   Print Part List
