01 - Control Panel Parts
02 - Detergent Cup
03 - Door
04 - Frame Parts
05 - Motor\heater & Spray Arm
06 - Racks
07 - Tub
SELECT A DIAGRAM
New Model Search:

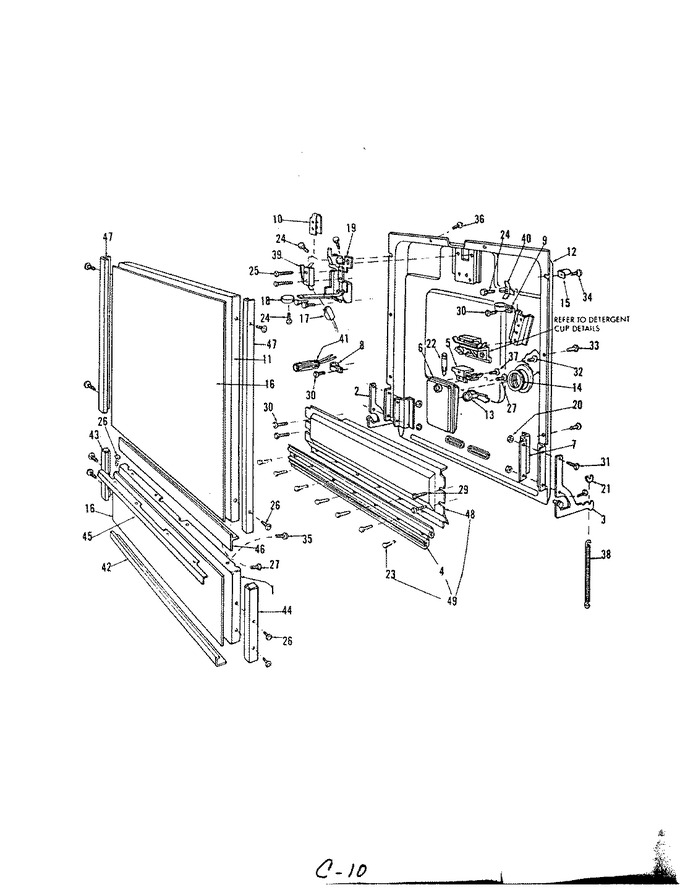

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 808304 | Access Panel |
|
- | |||||
| 2 | 807539 | Lh Arm |
|
- | |||||
| 3 | 807538 | Rh Arm |
|
- | |||||
| 4 | 808349 | Vent Panel Seal |
|
- | |||||
| 5 | 806756 | Bracket |
|
- | |||||
| 6 | 806753 | Dispenser |
|
- | |||||
| 7 | COMM PART | Arm Bracket (Replaces: 806717) |
|
- | |||||
| 8 | 805340 | Clamp |
|
- | |||||
| 9 | 807212 | Clamp |
|
- | |||||
| 10 | 807450 | Switch Cover |
|
- | |||||
| 11 | COMM PART | Door Panel (Replaces: 808298) |
|
- | |||||
| 12 | 808297 | Inner Panel |
|
- | |||||
| 13 | 807673 | Fill Plug |
|
- | |||||
| 14 | 805631 | Grommet |
|
- | |||||
| 15 | 807537 | Door Guide |
|
- | |||||
| 16 | COMM PART | Insert (Replaces: 808299) |
|
- | |||||
| 17 | 806846 | Insulator |
|
- | |||||
| 18 | 806893 | Knob |
|
- | |||||
| 19 | 807016 | Latch Asm |
|
- | |||||
| 20 | 800928 | Nut |
|
- | |||||
| 21 | 805884 | Spring Pad |
|
- | |||||
| 22 | 806757 | Plunger |
|
- | |||||
| 23 | 808330 | Rivet |
|
- | |||||
| 24 | 806830 | Screw |
|
- | |||||
| 25 | 803051 | Screw |
|
- | |||||
| 26 | WP74004005 | Screw (Replaces: 807293) |
|
$ 6.95 | |||||
| 27 | 807501 | Screw |
|
- | |||||
| 28 | W11233072 | Screw (Replaces: 805063) |
|
Immediately | $ 12.62 | ||||
| 29 | 806810 | Screw |
|
- | |||||
| 30 | W11233072 | Screw (Replaces: 803416) |
|
Immediately | $ 12.62 | ||||
| 31 | 803311 | Screw |
|
- | |||||
| 32 | 806863 | Screw |
|
- | |||||
| 33 | 806967 | Screw |
|
- | |||||
| 34 | 806976 | Screw |
|
- | |||||
| 35 | WP12990527 | Screw (Replaces: 807784) |
|
Immediately | $ 7.15 | ||||
| 36 | 806894 | Screw |
|
- | |||||
| 37 | 804895 | Screw |
|
- | |||||
| 38 | 807534 | Door Spring |
|
- | |||||
| 39 | 807043 | Switch |
|
- | |||||
| 40 | 807213 | Ground Terminal |
|
- | |||||
| 41 | 807464 | Thermostat |
|
- | |||||
| 42 | 808027 | Bottom Trim |
|
- | |||||
| 43 | 808104 | Trim |
|
- | |||||
| 44 | 808103 | Trim |
|
- | |||||
| 45 | 808346 | Acc Pnl Trim |
|
- | |||||
| 46 | 808323 | Trim |
|
- | |||||
| 47 | 808106 | Btm Trim |
|
- | |||||
| 48 | 808348 | Vent Plate |
|
- | |||||
| 49 | 808370 | Vent Panel Asm |
|
- |
