SELECT A DIAGRAM

01 - Control Panel


02 - Detergent Cup


03 - Door Parts


04 - Frame Parts


05 - Motor & Pump


06 - Rack


07 - Tub

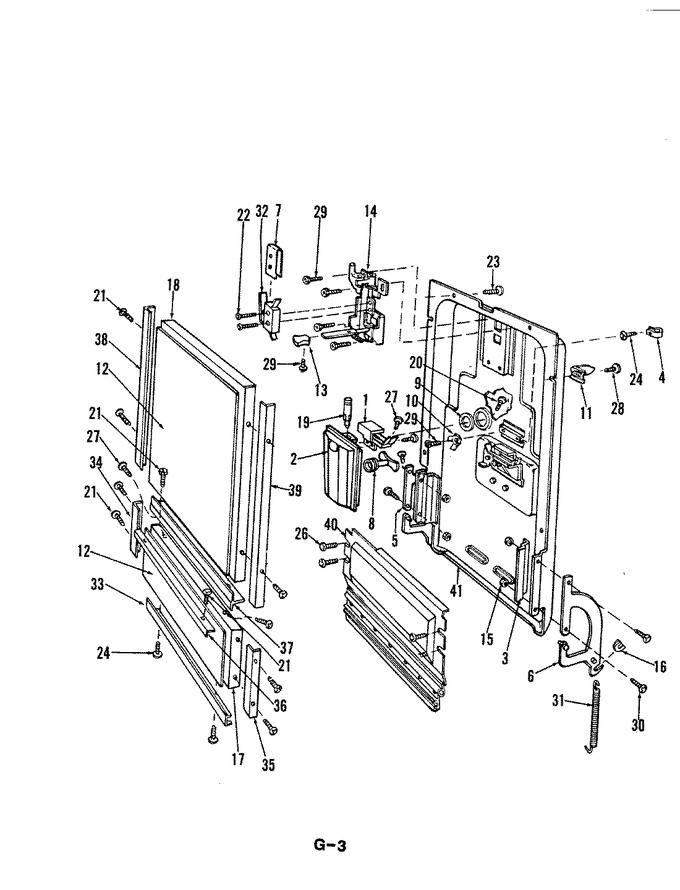

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806756		Bracket		Appelez-nous	-
2	806753		Dispenser		Appelez-nous	-
3	COMM PART		Arm Bracket   (Replaces: 806717)		Appelez-nous	-
4	808442		Wire Clamp		Appelez-nous	-
5	807539		Lh Arm		Appelez-nous	-
6	807538		Rh Arm		Appelez-nous	-
7	807450		Switch Cover		Appelez-nous	-
8	807673		Fill Plug		Appelez-nous	-
9	805631		Grommet		Appelez-nous	-
10	807213		Ground Terminal		Appelez-nous	-
11	807537		Door Guide		Appelez-nous	-
12	COMM PART		Insert   (Replaces: 808299)		Appelez-nous	-
13	806398		Latch Knob		Appelez-nous	-
14	807016		Latch Asm		Appelez-nous	-
15	M0282009		Locknut   (Replaces: 808470)				$ 12.06
16	805884		Spring Pad		Appelez-nous	-
17	808304		Access Panel		Appelez-nous	-
18	COMM PART		Door Panel   (Replaces: 808298)		Appelez-nous	-
19	806757		Plunger		Appelez-nous	-
20	806863		Screw		Appelez-nous	-
21	WP74004005		Screw   (Replaces: 807293)				$ 6.95
22	808425		Screw		Appelez-nous	-
23	806894		Screw		Appelez-nous	-
24	W11233072		Screw   (Replaces: 803416)			Immediately	$ 12.62
25	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.04
26	806810		Screw		Appelez-nous	-
27	807501		Screw		Appelez-nous	-
28	808749		Screw		Appelez-nous	-
29	806830		Screw		Appelez-nous	-
30	803311		Screw		Appelez-nous	-
31	807534		Door Spring		Appelez-nous	-
32	808303		Trim		Appelez-nous	-
34	808104		Trim		Appelez-nous	-
35	808103		Trim		Appelez-nous	-
36	808471		Access Pnl Trim		Appelez-nous	-
37	808328		Trim, Door Panel		Appelez-nous	-
38	808991		Lh Door Trim		Appelez-nous	-
39	808990		Trim		Appelez-nous	-
40	808370		Vent Panel Asm		Appelez-nous	-
41	808583		Inner Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
