SELECT A DIAGRAM

01 - Control Panel


02 - Detergent Cup


03 - Door Parts


04 - Frame Parts


05 - Motor & Pump


06 - Rack


07 - Tub

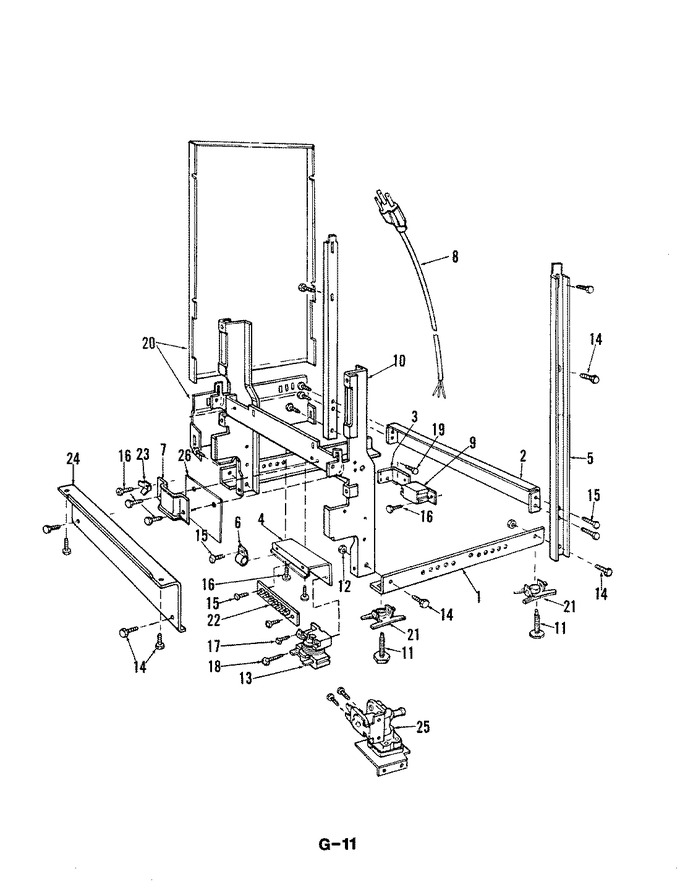

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807564		Base Angle		Appelez-nous	-
2	807566		Rear Brace		Appelez-nous	-
3	807019		Bracket		Appelez-nous	-
4	807849		Bracket		Appelez-nous	-
5	808670		Support Channel		Appelez-nous	-
6	808442		Wire Clamp		Appelez-nous	-
7	806723		Clamp		Appelez-nous	-
8	808395		Cord Kit		Appelez-nous	-
9	800222		Terminal Cover		Appelez-nous	-
10	809212		Hinge Asm		Appelez-nous	-
11	807672		Leveler		Appelez-nous	-
12	M0282005		Nut   (Replaces: 804619)				$ 7.07
13	805255		Relay		Appelez-nous	-
14	807001		Screw		Appelez-nous	-
15	807501		Screw		Appelez-nous	-
16	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.04
17	WP488234		Screw   (Replaces: 806593)				$ 6.07
18	804672		Screw		Appelez-nous	-
19	807950		Screw		Appelez-nous	-
20	808885		Side Panel		Appelez-nous	-
21	807671		Teenut		Appelez-nous	-
22	COMM PART		Terminal Block   (Replaces: 807486)		Appelez-nous	-
23	807213		Ground Terminal		Appelez-nous	-
24	807559		Toe Plate		Appelez-nous	-
25	809241		Wtr Inlet Valve		Appelez-nous	-
26	W10124350		Not Required Part Or See Note Non-replaceable Part		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
