View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

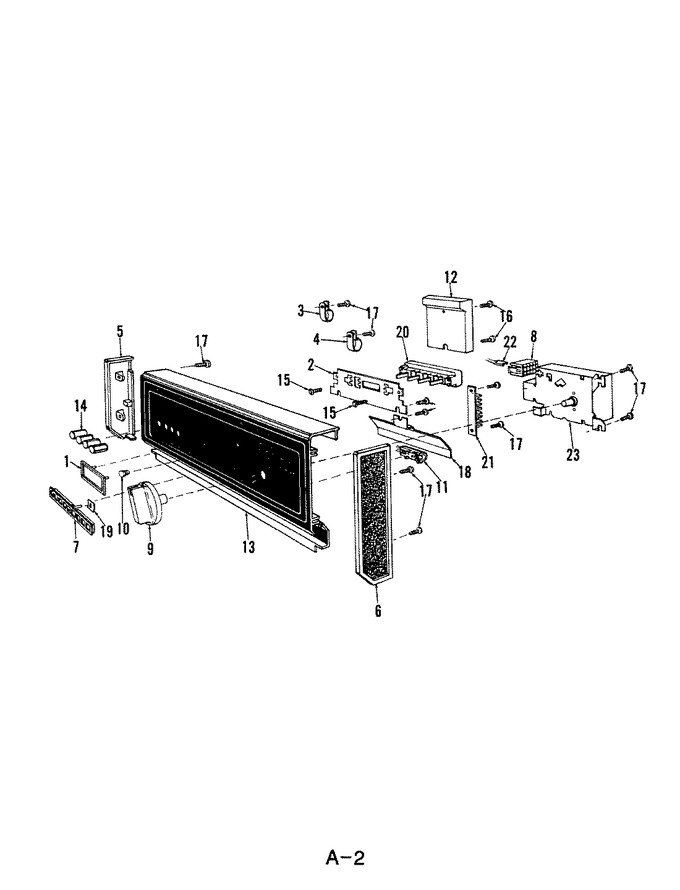

01 - Control Panel
02 - Detergent Cup
03 - Door Parts
04 - Frame Parts
05 - Motor & Pump
06 - Rack
07 - Tub
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 809325 | Nameplate |
|
- | |||||
| 1 | 809324 | Nameplate |
|
- | |||||
| 1 | 809326 | Nameplate |
|
- | |||||
| 2 | 806594 | Switch Bracket |
|
- | |||||
| 3 | W10833902 | Clamp (Replaces: 805584) |
|
$ 9.89 | |||||
| 4 | 808442 | Wire Clamp |
|
- | |||||
| 5 | 808811 | Lh End Cap |
|
- | |||||
| 6 | 808810 | Rh End Cap |
|
- | |||||
| 7 | 808477 | Vent Trim |
|
- | |||||
| 8 | 809296 | Terminal Housing |
|
- | |||||
| 9 | 809327 | Knob |
|
- | |||||
| 10 | 809036 | Lens |
|
- | |||||
| 11 | 809317 | Light Assembly |
|
- | |||||
| 12 | 807425 | Splash Pan |
|
- | |||||
| 13 | 809319 | Control Panel |
|
- | |||||
| 14 | 809323 | Pushbutton |
|
- | |||||
| 15 | 807141 | Screw |
|
- | |||||
| 16 | 806894 | Screw |
|
- | |||||
| 17 | 809175 | Screw |
|
- | |||||
| 18 | 808574 | Shield |
|
- | |||||
| 19 | 808475 | Speednut |
|
- | |||||
| 20 | 809328 | Pb Switch |
|
- | |||||
| 21 | 808483 | Terminal Board |
|
- | |||||
| 22 | 808333 | Terminal |
|
- | |||||
| 23 | 809190 | Timer |
|
- |
