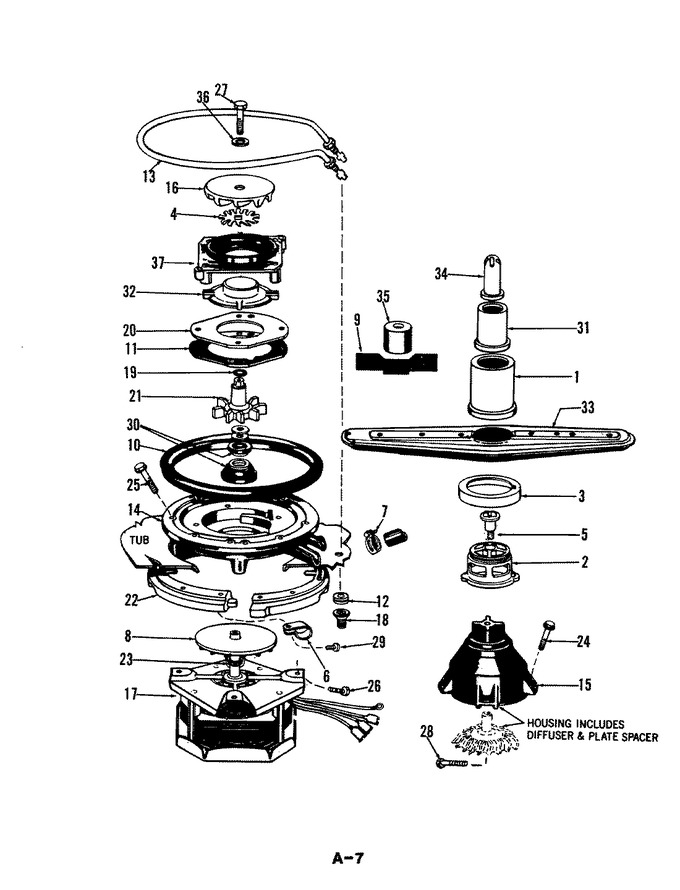

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	808178		Tower Base		Appelez-nous	-
2	809046		Bearing		Appelez-nous	-
3	808924		Bearing Shield		Appelez-nous	-
4	808075		Macerator Blade		Appelez-nous	-
5	808442		Wire Clamp		Appelez-nous	-
6	808442		Wire Clamp		Appelez-nous	-
7	WP285655		Clamp   (Replaces: 808186)			Immediately	$ 7.55
8	808899		Water Shld, Fan		Appelez-nous	-
9	807077		Shim Gauge		Appelez-nous	-
10	809008		Pump Gasket		Appelez-nous	-
11	5300807709		Gasket   (Replaces: 807709)				$ 54.26
12	5300806833		Grommet   (Replaces: 806833)				$ 5.34
13	806864		Heater Kit		Appelez-nous	-
14	809059		Pump Housing		Appelez-nous	-
15	809119		Impelr Hsg Kit		Appelez-nous	-
16	809005		Upper Impeller		Appelez-nous	-
17	809100		Motor		Appelez-nous	-
18	154106202		Nut   (Replaces: 806834)			Immediately	$ 18.32
19	806521		O Ring		Appelez-nous	-
20	807884		Pump Plate		Appelez-nous	-
21	809116		Pump Seal Kit		Appelez-nous	-
22	807712		Clamp Ring		Appelez-nous	-
23	808898		Ring		Appelez-nous	-
24	807359		Screw		Appelez-nous	-
25	807268		Screw		Appelez-nous	-
26	809022		Screw		Appelez-nous	-
27	806353		Screw		Appelez-nous	-
28	WP67006908		Screw   (Replaces: 809121)			Immediately	$ 7.16
29	807270		Screw		Appelez-nous	-
30	803903		Gasket		Appelez-nous	-
31	808179		Tower Section		Appelez-nous	-
32	806267		Shroud		Appelez-nous	-
33	808848		Spray Arm		Appelez-nous	-
34	808849		Tower Tip		Appelez-nous	-
35	803923		Seal Tool		Appelez-nous	-
36	803367		Washer		Appelez-nous	-
37	809020		Spacer Plate		Appelez-nous	-
