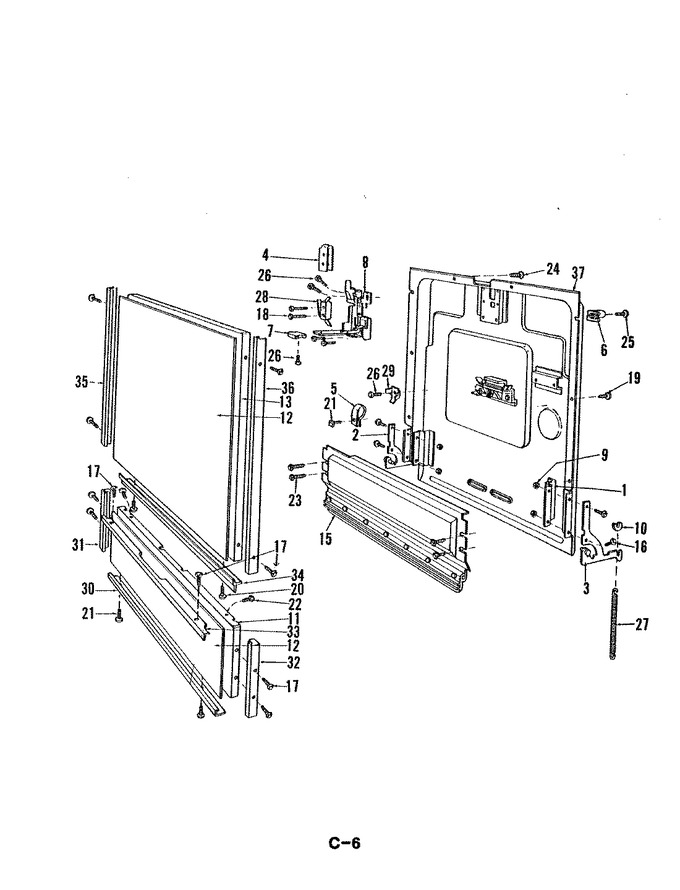

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	COMM PART		Arm Bracket   (Replaces: 806717)		Appelez-nous	-
2	805682		Lh Arm		Appelez-nous	-
3	805681		Rh Arm		Appelez-nous	-
4	807450		Switch Cover		Appelez-nous	-
5	808923		Door Insert		Appelez-nous	-
5	808442		Wire Clamp		Appelez-nous	-
6	807449		Door Guide		Appelez-nous	-
7	806398		Latch Knob		Appelez-nous	-
8	807016		Latch Asm		Appelez-nous	-
9	M0282009		Locknut   (Replaces: 808470)				$ 12.06
10	805884		Spring Pad		Appelez-nous	-
11	809108		Access Panel		Appelez-nous	-
12	808910		Door Trim		Appelez-nous	-
12	808911		Door Trim		Appelez-nous	-
12	808916		Door Trim		Appelez-nous	-
12	808914		Acc Pnl Insert		Appelez-nous	-
12	808913		Door Trim		Appelez-nous	-
12	808912		Door Insert		Appelez-nous	-
12	808909		Access Dr Panel		Appelez-nous	-
12	808908		Panel Kit, Door & Access		Appelez-nous	-
13	807262		Outer Panel		Appelez-nous	-
14	808908		Panel Kit, Door & Access		Appelez-nous	-
15	5300809243		Vent Baffle   (Replaces: 809122)				$ 20.25
16	803311		Screw		Appelez-nous	-
17	WP74004005		Screw   (Replaces: 807293)				$ 6.95
18	808618		Screw		Appelez-nous	-
19	806967		Screw		Appelez-nous	-
20	807501		Screw		Appelez-nous	-
21	W11233072		Screw   (Replaces: 803416)			Immediately	$ 12.62
22	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.04
23	806810		Screw		Appelez-nous	-
24	806894		Screw		Appelez-nous	-
25	808749		Screw		Appelez-nous	-
26	806830		Screw		Appelez-nous	-
27	805683		Door Spring		Appelez-nous	-
28	807043		Switch		Appelez-nous	-
29	807213		Ground Terminal		Appelez-nous	-
30	808027		Bottom Trim		Appelez-nous	-
31	808029		Lh Trim		Appelez-nous	-
32	808028		Rh Trim		Appelez-nous	-
33	808346		Acc Pnl Trim		Appelez-nous	-
