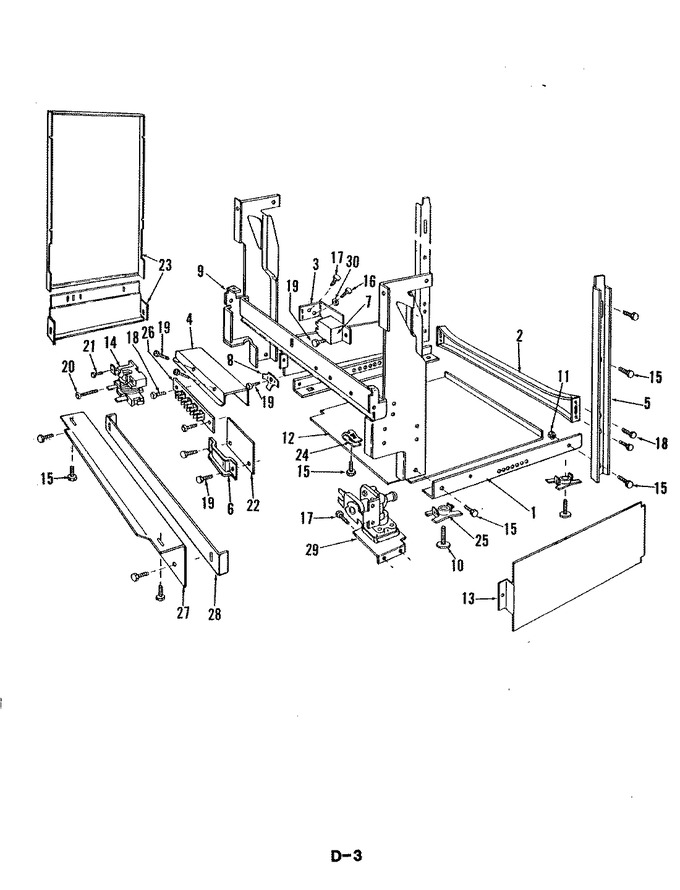

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807851		Side Channel		Appelez-nous	-
2	807852		Rear Brace		Appelez-nous	-
3	807019		Bracket		Appelez-nous	-
4	807849		Bracket		Appelez-nous	-
5	808670		Support Channel		Appelez-nous	-
6	806723		Clamp		Appelez-nous	-
7	800222		Terminal Cover		Appelez-nous	-
8	807213		Ground Terminal		Appelez-nous	-
9	807848		Hinge		Appelez-nous	-
10	807672		Leveler		Appelez-nous	-
11	M0282005		Nut   (Replaces: 804619)				$ 7.07
12	808434		Bottom Panel		Appelez-nous	-
13	808433		Side Panel		Appelez-nous	-
14	805255		Relay		Appelez-nous	-
15	807001		Screw		Appelez-nous	-
16	807951		Screw		Appelez-nous	-
17	807950		Screw		Appelez-nous	-
18	807501		Screw		Appelez-nous	-
19	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.04
20	804672		Screw		Appelez-nous	-
21	WP488234		Screw   (Replaces: 806593)				$ 6.07
22	COMM PART		Wire Shield   (Replaces: 808013)		Appelez-nous	-
23	808881		Side Panel Kit		Appelez-nous	-
23	808884		Side Panel Kit		Appelez-nous	-
23	808880		Side Panel Kit		Appelez-nous	-
23	808883		Side Panel Kit		Appelez-nous	-
23	808882		Side Panel Kit		Appelez-nous	-
24	808170		Speednut		Appelez-nous	-
25	807671		Teenut		Appelez-nous	-
26	COMM PART		Terminal Block   (Replaces: 807486)		Appelez-nous	-
27	807850		Toe Plate		Appelez-nous	-
28	806295		Toe Plate		Appelez-nous	-
29	809240		Water Valve		Appelez-nous	-
30	807373		Washer		Appelez-nous	-
