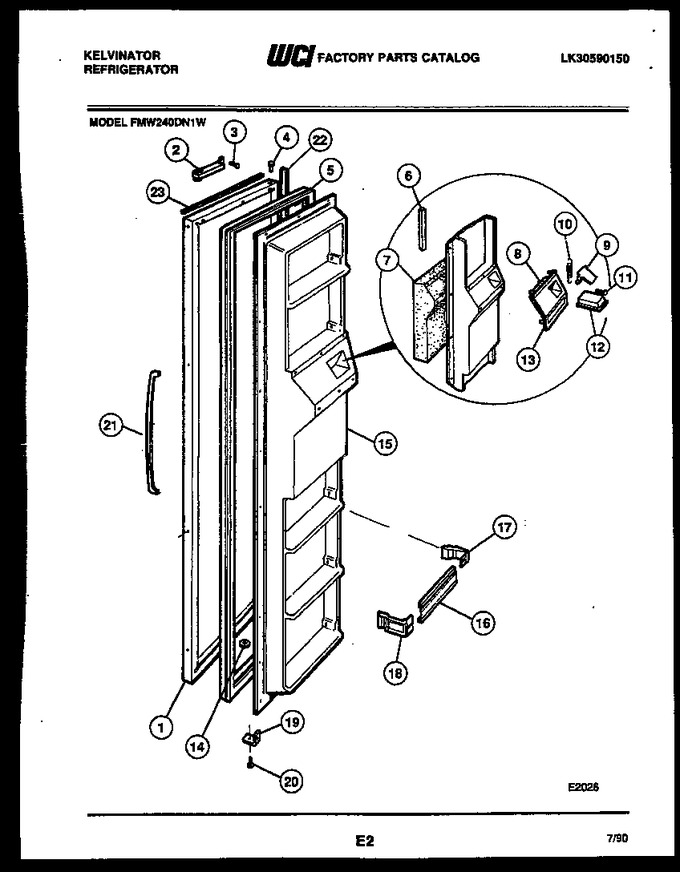

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303916809 | Freezer Door - Coffee |
|
- | |||||
| 2 | 5303200272 | Door Closer |
|
- | |||||
| 3 | 3001020 | Screw-closer Mtg (2) |
|
- | |||||
| 4 | 5303001022 | Bearing-upper Hinge |
|
- | |||||
| 5 | 5303001049 | Gasket-freezer Door |
|
- | |||||
| 6 | 5303001046 | Shield-wiring |
|
- | |||||
| 7 | 5308017045 | Insulation-housing |
|
- | |||||
| 8 | 5303001048 | Pin-ice Door Hinge |
|
- | |||||
| 9 | 5317504004 | Flipper - Ice Door |
|
- | |||||
| 10 | 5308010300 | Spring-flipper Retainer |
|
$ 36.91 | |||||
| 11 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 12 | 5300185981 | Ice Door Assy. |
|
- | |||||
| 13 | 5317440203 | Trim Cover - Door Panel |
|
- | |||||
| 14 | 5303001063 | Bushing-lower Hinge |
|
- | |||||
| 15 | 5318077501 | Panel - Inner Door |
|
- | |||||
| 16 | G162939-34 | Door Rack (5) |
|
- | |||||
| 17 | G170022-01 | Support - Rh (5) |
|
- | |||||
| 18 | 5317002301 | Support - Lh (5) |
|
- | |||||
| 19 | 5308000790 | Bumper, Light Switch |
|
$ 3.86 | |||||
| 20 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 21 | 5318302302 | Handle - Freezer Door |
|
- | |||||
| 22 | 5316100218 | Trim - Door - Lh Side |
|
- | |||||
| 23 | 5318429704 | Trim - Door Top |
|
- | |||||
| *13989 | 08004263 | Screw - 6(a) X 1/2 (2) |
|
- | |||||
| *13989 | 5303007739 | Insulation, Bulk |
|
- | |||||
| *13990 | 5308011745 | Screw |
|
$ 10.38 | |||||
| *13990 | 5300161116 | Plug - Door Trim (2) |
|
- | |||||
| 13A | 5308017047 | Nut-self Threading (6) (non-illustrated) |
|
- | |||||
| 15A | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 1A | 5315230801 | Door Plug-bottom (non-illustrated) |
|
- | |||||
| 21A | 5308013645 | Screw - Handle (2) (non-illustrated) |
|
- | |||||
| 22A | 5317268016 | Trim - Door - Rh Side (non-illustrated) |
|
- |
