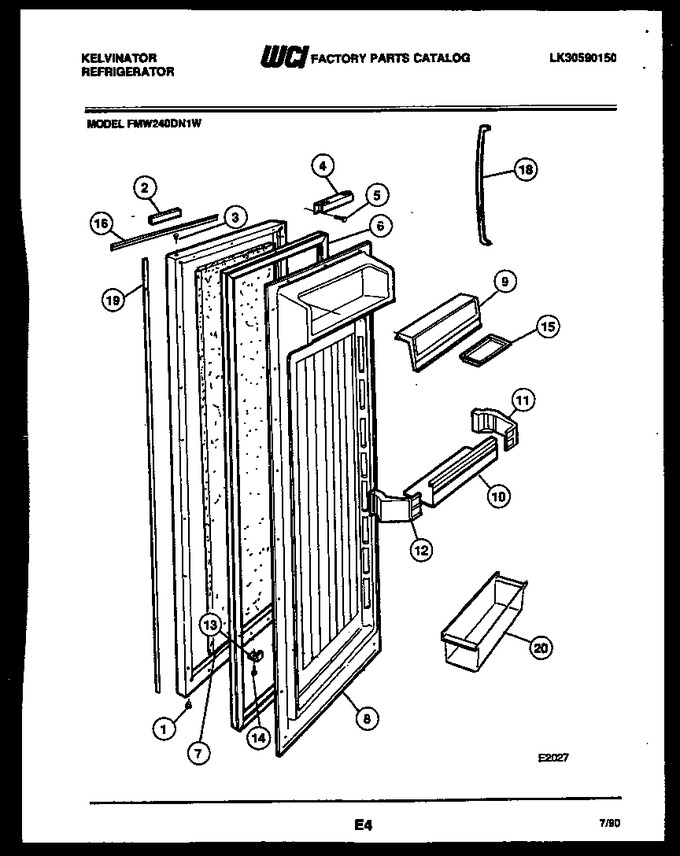

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5315230801 | Plug-door Bottom |
|
- | |||||
| 1 | G181108-10 | Refr Door - Coffee |
|
- | |||||
| 2 | 5300178292 | Frame Nameplate |
|
- | |||||
| 3 | 5308012007 | Hinge Bearing - Lower |
|
- | |||||
| 3 | 5303001022 | Hinge Bearing, Upper |
|
- | |||||
| 4 | 5303200272 | Door Closer |
|
- | |||||
| 5 | 3001020 | Screw - Mounting |
|
- | |||||
| 6 | 5303200473 | Gasket - Refrigerator |
|
- | |||||
| 7 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 8 | 5317161801 | Door Panel - Inner |
|
- | |||||
| 8 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 9 | 5316778305 | Dairy Door |
|
- | |||||
| 10 | 5316303110 | Door Rack (5) |
|
- | |||||
| 11 | G163064-01 | Support Rh (5) |
|
- | |||||
| 12 | G163065-01 | Support Lh (5) |
|
- | |||||
| 13 | 5308000790 | Bumper, Light Switch |
|
$ 3.86 | |||||
| 14 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 15 | 5308000716 | Dish-butter |
|
$ 20.48 | |||||
| 16 | 5318429703 | Trim - Door Face |
|
- | |||||
| 18 | 5318302302 | Handle |
|
- | |||||
| 19 | 5316100117 | Trim - Door - Rh Side |
|
- | |||||
| 20 | 5317394811 | Container - Egg |
|
- | |||||
| *13993 | 5308011745 | Screw |
|
$ 10.38 | |||||
| *13993 | 5300161116 | Plug - Door Trim (2) |
|
- | |||||
| *13993 | 08004263 | Screw - 6(a) X 1/2 (2) |
|
- | |||||
| 10A | 5303001008 | Rivet (4 Ea.) (non-illustrated) |
|
- | |||||
| 10B | 5308000812 | Screw (2 Ea.) (non-illustrated) |
|
- | |||||
| 18A | 5308013645 | Trim Screw - Handle (2) (non-illustrated) |
|
- | |||||
| 19A | 5317268015 | Trim - Door - Lh Side (non-illustrated) |
|
- | |||||
| 2A | 5317828201 | Label - Nameplate (non-illustrated) |
|
- | |||||
| 2B | 5315340760 | Tape Nameplate (non-illustrated) |
|
- |
