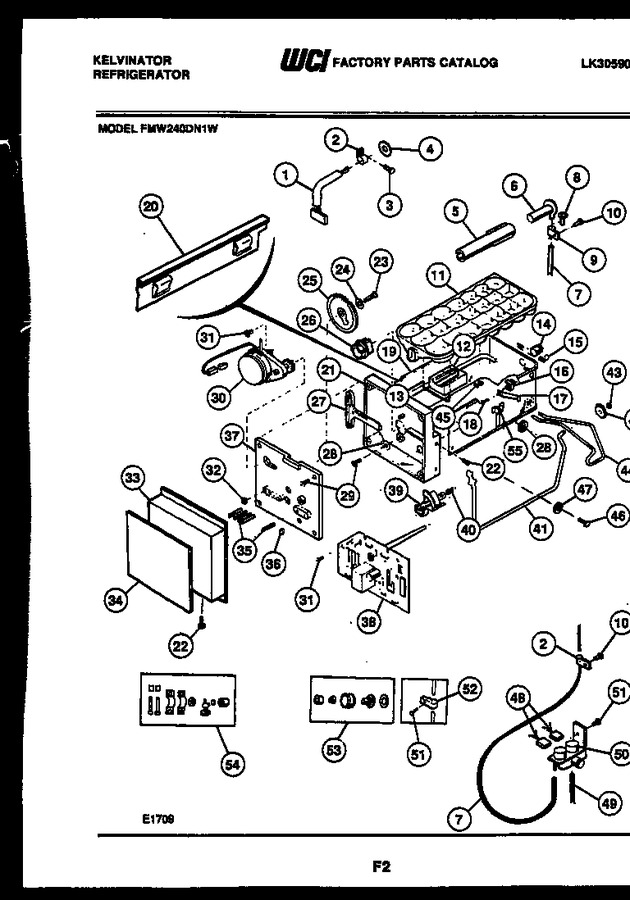

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001245 | Wiring Harness-ice & Water-im |
|
- | |||||
| 2 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 3 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 4 | 5303001147 | Plug-harness Hole, (2) |
|
$ 22.30 | |||||
| 5 | 5308015765 | Tube-filler Extension |
|
- | |||||
| 6 | 5308010269 | Tube-filler Inlet |
|
- | |||||
| 7 | 5303015131 | Tube Valve To Filler Inlet |
|
- | |||||
| 8 | 5303001191 | Sleeve-tube Insert |
|
$ 6.72 | |||||
| 9 | 5303001193 | Clamp-tube |
|
$ 16.30 | |||||
| 10 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 11 | 5302832432 | Tray-ice W/ Insul & Retnr |
|
$ 71.72 | |||||
| 12 | 5303001141 | Insulator-thermostat |
|
$ 23.52 | |||||
| 13 | 5301138379 | Retainer-insulator |
|
$ 3.89 | |||||
| 14 | 5300618683 | Pivot-tray |
|
- | |||||
| 15 | 5303001132 | Spring-tray Return |
|
- | |||||
| 16 | 5300174436 | Nut-push In |
|
- | |||||
| 17 | 5301121700 | Spring-tray Restrainer |
|
- | |||||
| 18 | 5301121694 | Screw-spring Mtg |
|
- | |||||
| 19 | 5301138166 | Frame-ice Maker |
|
- | |||||
| 20 | 01124226 | Extension - Frame |
|
- | |||||
| 21 | 5303001143 | Housing-mechanism |
|
- | |||||
| 22 | 5306588927 | Screw-8-32 X 1/2 (5) |
|
- | |||||
| 23 | 5303001119 | Shaft-crank Gear |
|
- | |||||
| 24 | 5303001117 | Washer-crank Shaft |
|
- | |||||
| 25 | 5301124984 | Gear-crank |
|
- | |||||
| 26 | 5301124972 | Gear-sliding Spur |
|
- | |||||
| 27 | 5303001136 | Rack-gear |
|
- | |||||
| 28 | 5301124979 | Washer-flat (2) |
|
- | |||||
| 29 | 5308010350 | Screw-6-32 X 1/2 (5) |
|
- | |||||
| 30 | 5301124982 | Motor-ice Maker |
|
- | |||||
| 31 | 5301124507 | Screw-4-40 X 7/32 (5) |
|
- | |||||
| 32 | 5303001118 | Nut-hex 10-32 Lh Thd |
|
- | |||||
| 33 | 5317770904 | Front - Ice Maker |
|
- | |||||
| 34 | 5318078901 | Label - Ice Maker |
|
- | |||||
| 35 | 5301124987 | Follower Pin-cam (5) |
|
- | |||||
| 36 | 5308010348 | Retainer Ring-cam |
|
- | |||||
| 37 | 5301124981 | Plate-motor Mtg |
|
- | |||||
| 38 | 5308011238 | Pc Board |
|
- | |||||
| 39 | 5301124983 | Cam-ice Level |
|
- | |||||
| 40 | 5303001139 | Spring-sensing Arm |
|
- | |||||
| 41 | 5301124988 | Sensing Arm |
|
- | |||||
| 42 | 5301123459 | Bearing-arm |
|
- | |||||
| 43 | 5301138171 | Retainer Ring |
|
- | |||||
| 44 | 5301138222 | Shut-off Wire |
|
- | |||||
| 45 | 5303001125 | Retainer-wire (2) |
|
- | |||||
| 46 | 5308012819 | Screw-ice Maker Mtg |
|
- | |||||
| 47 | 5303001216 | Washer-screw |
|
- | |||||
| 48 | 5308017050 | Wiring Harness-ice & Water (lower) |
|
- | |||||
| 49 | 5303015130 | Tube-valve To Tank |
|
- | |||||
| 50 | 5308017599 | Water Valve-dual Solenoid |
|
$ 67.90 | |||||
| 51 | 5308000039 | Screw |
|
- | |||||
| 52 | 5304455846 | Clamp-copper Tube (Replaces: 5303001549) |
|
$ 10.63 | |||||
| 53 | 5308000205 | Water Supply Adapter Kit |
|
$ 79.01 | |||||
| 54 | 65801LF | Saddle-valve Kit (Replaces: 5308000247) |
|
Immediately | $ 8.27 | ||||
| 55 | 5308012818 | Guide-i.m. Screw |
|
- | |||||
| 50A | 5303015102 | Cap-water Valve (non-illustrated) |
|
- |
