SELECT A DIAGRAM

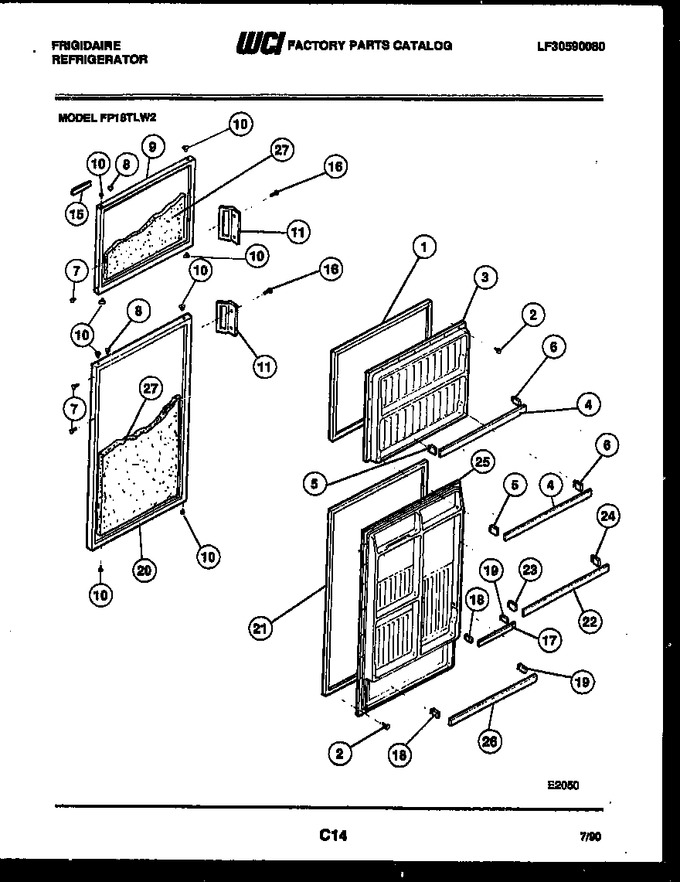

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303018791 | Gasket |
|
$ 130.56 | |||||
| 2 | 08002748 | Screw |
|
- | |||||
| 3 | 08009835 | Panel-inner |
|
- | |||||
| 4 | 3018793 | Rack-front |
|
- | |||||
| 5 | 5303323481 | End Cap-lh (Replaces: 5303017379) |
|
Immediately | $ 14.18 | ||||
| 6 | 5303323480 | End Cap-rh (Replaces: 5303017376) |
|
$ 14.18 | |||||
| 7 | 240494001 | Button-plug (white) (4) (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 8 | 5308000134 | Button-plug (white) (1) |
|
$ 5.62 | |||||
| 9 | 5300179987 | Panel-ext (white) |
|
- | |||||
| 10 | 5308012077 | Bearing (8) |
|
- | |||||
| 11 | 3016493 | Handle-complete |
|
$ 88.88 | |||||
| 15 | 3201526 | Nameplate |
|
- | |||||
| 16 | 08013645 | Screw |
|
- | |||||
| 17 | 215516220 | Rack-front (Replaces: 3018794) |
|
$ 54.58 | |||||
| 18 | 5303204839 | End Cap-lh |
|
- | |||||
| 19 | 5303205339 | End Cap-rh |
|
- | |||||
| 20 | 5300179986 | Panel-outer (white) |
|
- | |||||
| 21 | 5303018792 | Gasket |
|
- | |||||
| 22 | 3018796 | Rack-front |
|
- | |||||
| 23 | 5303323481 | End Cap-lh (Replaces: 5303017379) |
|
Immediately | $ 14.18 | ||||
| 24 | 5303323480 | End Cap-rh (Replaces: 5303017376) |
|
$ 14.18 | |||||
| 25 | 5303210345 | Panel-inner |
|
- | |||||
| 26 | 3018795 | Rack-front |
|
- | |||||
| 27 | 09950831 | Insulation (cut To Size) |
|
- | |||||
| 25A | 08000136 | Kit-dr Cnv (white) (non-illustrated) |
|
- |
