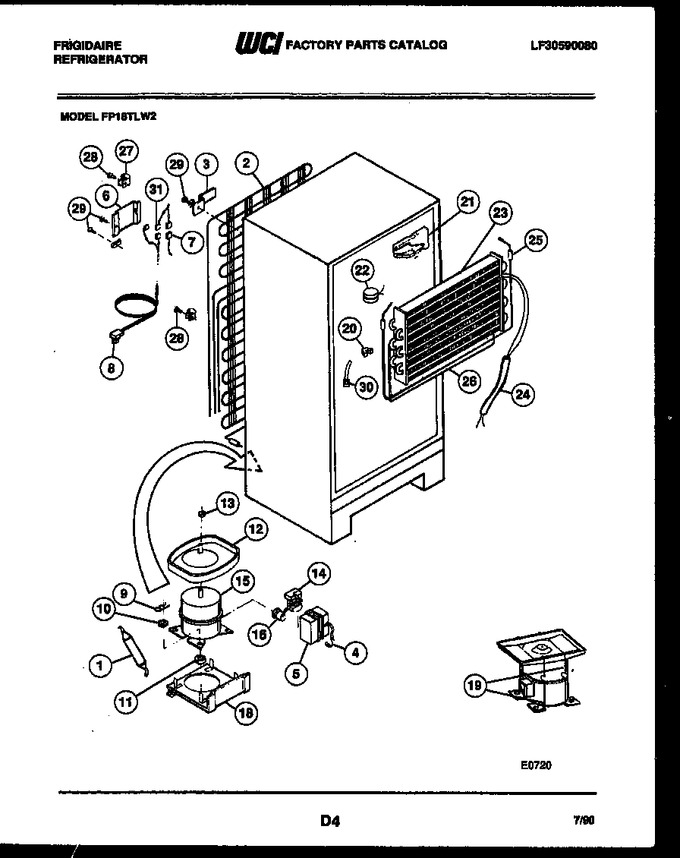

04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
2	5300163133		Condenser		Appelez-nous	-
3	5303001342		Bracket (4)		Appelez-nous	-
4	5303006412		Strap-bale		Appelez-nous	-
5	5303006411		Cover		Appelez-nous	-
6	5303001197		Cover-wiring		Appelez-nous	-
7	5303001347		Harness-compr		Appelez-nous	-
8	5316254901		Service Cord		Appelez-nous	-
9	08003596		Clip (4)		Appelez-nous	-
10	08003597		Washer (4)		Appelez-nous	-
11	08008778		Grommet (4)		Appelez-nous	-
12	5300184715		Pan & Nut		Appelez-nous	-
13	08003611		Nut		Appelez-nous	-
14	216594300		Relay   (Replaces: 3204486)				$ 28.92
15	5303916411		Compressor W/ Electricals		Appelez-nous	-
16	3204487		Overload		Appelez-nous	-
18	5308013663		Mounting Plate		Appelez-nous	-
19	08950024		Retainer Pan		Appelez-nous	-
20	5308017227		Block-lh		Appelez-nous	-
21	5308013648		Block-rh		Appelez-nous	-
22	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
23	5300162506		Evaporator		Appelez-nous	-
24	5308000728		Heat Exchanger		Appelez-nous	-
25	5317842502		Heater-defrost				$ 133.96
26	5316651102		Insulator				$ 53.04
27	08000187		Clamp		Appelez-nous	-
28	08002748		Screw		Appelez-nous	-
29	08000039		Screw		Appelez-nous	-
30	5308000110		Strap			Immediately	$ 59.82
31	3001383		Harness-div		Appelez-nous	-
21A	5303007287		Plug-block (non-illustrated)		Appelez-nous	-
3A	5308009617		Lock Washer-cond Bracket (2) (non-illustrated)		Appelez-nous	-
