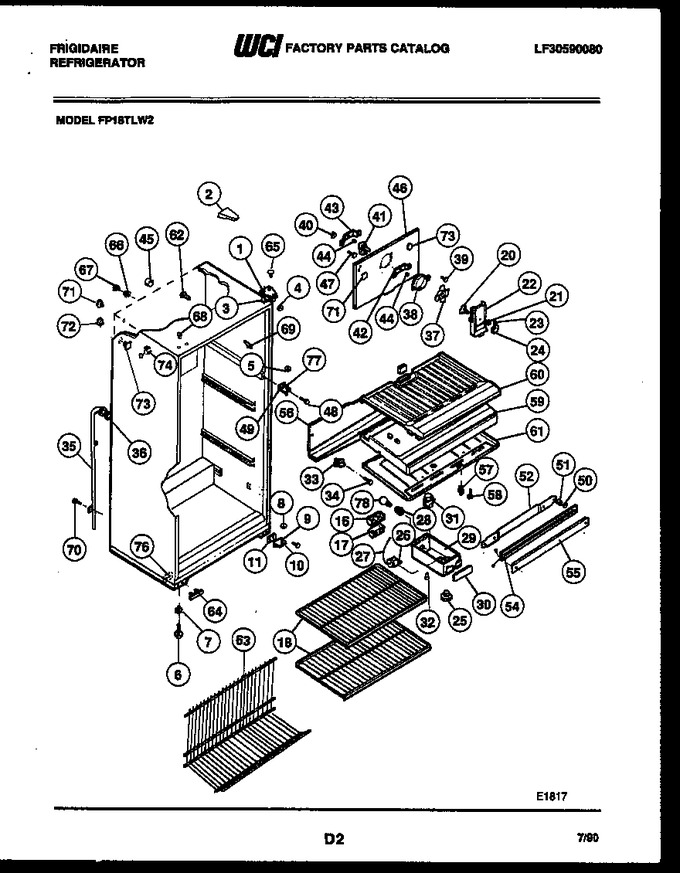

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012843 | Hinge |
|
$ 71.47 | |||||
| 2 | 08012820 | Cover-hinge-white |
|
- | |||||
| 3 | 5303001037 | Shim |
|
$ 12.39 | |||||
| 4 | 530800007 | Washer-nylon |
|
- | |||||
| 5 | 5303018791 | Washer-nylon |
|
$ 130.56 | |||||
| 6 | 5303205540 | Leg-leveling |
|
- | |||||
| 7 | 5308003584 | Nut |
|
$ 7.30 | |||||
| 8 | 08010252 | Screw |
|
- | |||||
| 9 | 08003578 | Pin |
|
- | |||||
| 10 | 5303202834 | Bracket-hinge (btm) |
|
$ 89.41 | |||||
| 11 | 08000755 | Shim |
|
- | |||||
| 16 | 5308000071 | Deflector-air |
|
- | |||||
| 17 | 5303001546 | Cover-defl |
|
- | |||||
| 18 | 08009921 | Shelf (2) |
|
- | |||||
| 20 | 5303001331 | Damper |
|
$ 31.71 | |||||
| 21 | 5303001028 | Nut |
|
- | |||||
| 22 | 08009820 | Cover-fan |
|
- | |||||
| 23 | 5303210347 | Knob-damper |
|
- | |||||
| 25 | 5308010011 | Knob-comtrol |
|
- | |||||
| 26 | 5303200810 | Control |
|
$ 126.87 | |||||
| 27 | 08003637 | Tube-plastic |
|
- | |||||
| 28 | 5308000129 | Socket |
|
$ 62.16 | |||||
| 29 | 3201528 | Box |
|
- | |||||
| 30 | 08009816 | Label |
|
- | |||||
| 31 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 32 | 08000008 | Screw (2) |
|
- | |||||
| 33 | 5308000056 | Spout |
|
$ 11.66 | |||||
| 34 | 08013647 | Pin-push (2) |
|
- | |||||
| 35 | 5303001348 | Tube-drain |
|
$ 2.73 | |||||
| 36 | 5303207353 | Seal |
|
$ 6.81 | |||||
| 37 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 38 | 5308000124 | Ring, Orifice |
|
$ 53.58 | |||||
| 39 | 08000098 | Screw |
|
- | |||||
| 40 | 5308000107 | Bracket |
|
$ 33.23 | |||||
| 41 | 5300158289 | Motor |
|
Immediately | $ 149.94 | ||||
| 42 | 08000043 | Bracket-front |
|
- | |||||
| 43 | 08000042 | Bracket-rear |
|
- | |||||
| 44 | 08000032 | Bushing |
|
- | |||||
| 45 | 08000004 | Tube |
|
- | |||||
| 46 | 5308009771 | Cover |
|
- | |||||
| 47 | 5303209814 | Nut (2) |
|
- | |||||
| 48 | 08000127 | Screw |
|
- | |||||
| 49 | 5303001369 | Bracket-hinge |
|
- | |||||
| 50 | 08003607 | Washer-mullion (4) |
|
- | |||||
| 51 | 5303200464 | Spacer (2) |
|
- | |||||
| 52 | 5303208254 | Heater |
|
- | |||||
| 54 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 55 | 5308010008 | Strap-mullion |
|
- | |||||
| 56 | 5303001470 | Trough-drain |
|
- | |||||
| 57 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 58 | 08000070 | Screw |
|
- | |||||
| 59 | 5303001504 | Divider-styro |
|
- | |||||
| 60 | 5303001505 | Bottom, Freezer |
|
- | |||||
| 61 | 5303016367 | Top-refrigerator |
|
- | |||||
| 62 | 5308000097 | Support Cover |
|
- | |||||
| 63 | 5303207181 | Trivet |
|
- | |||||
| 64 | 5303001478 | Button-plug |
|
- | |||||
| 65 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 66 | 08006970 | Ferrule |
|
- | |||||
| 67 | 08006971 | Ferrule |
|
- | |||||
| 68 | 5303001388 | Button Plug-white |
|
$ 2.60 | |||||
| 69 | 5303202336 | Trim-corner (white) |
|
- | |||||
| 70 | 08000039 | Screw |
|
- | |||||
| 71 | 08000040 | Plug |
|
- | |||||
| 72 | 08000014 | Plug |
|
- | |||||
| 73 | 5308013636 | Button-plug Decor |
|
- | |||||
| 74 | 5308016571 | Button-plug (6) |
|
$ 4.79 | |||||
| 76 | 5308012296 | Plate-tapping (2) |
|
$ 47.44 | |||||
| 77 | 08000184 | Pin-center Hinge |
|
- | |||||
| 78 | 5303001179 | Bulb-40w |
|
- | |||||
| *34397 | 08016565 | Label-freezer (im) |
|
- | |||||
| *34397 | 01121808 | Ice Tray, Plastic |
|
- | |||||
| 1A | 5308012296 | Tapping Plate (2) (non-illustrated) |
|
$ 47.44 | |||||
| 26A | 08000009 | Screw |
|
- | |||||
| 32A | 3201560 | Switch-energy (non-illustrated) |
|
- | |||||
| 46A | 5316651102 | Insulator-plastic (non-illustrated) |
|
$ 53.04 | |||||
| 49A | 5303206754 | Washer-hinge Ctr (2) (non-illustrated) |
|
- |
