Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 903038 Wire Harness Appelez-nous -
2 912006 Washer Appelez-nous -
3 901434 Screw And Washer Assembly Appelez-nous -
4 WP489128 Screw, Ground Wire To Base--na   (Replaces: 210186) Special Order $ 9.79

5 902911 Transformer Appelez-nous -
6 902916 Relay Assembly Appelez-nous -
7 902912 Printed Circuit Board Appelez-nous -
8 910309 Washer Appelez-nous -
9 WP8281196 Screw   (Replaces: 912590) In-Stock Immediately $ 6.47

10 902998 Control Panel Assy (du599b) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

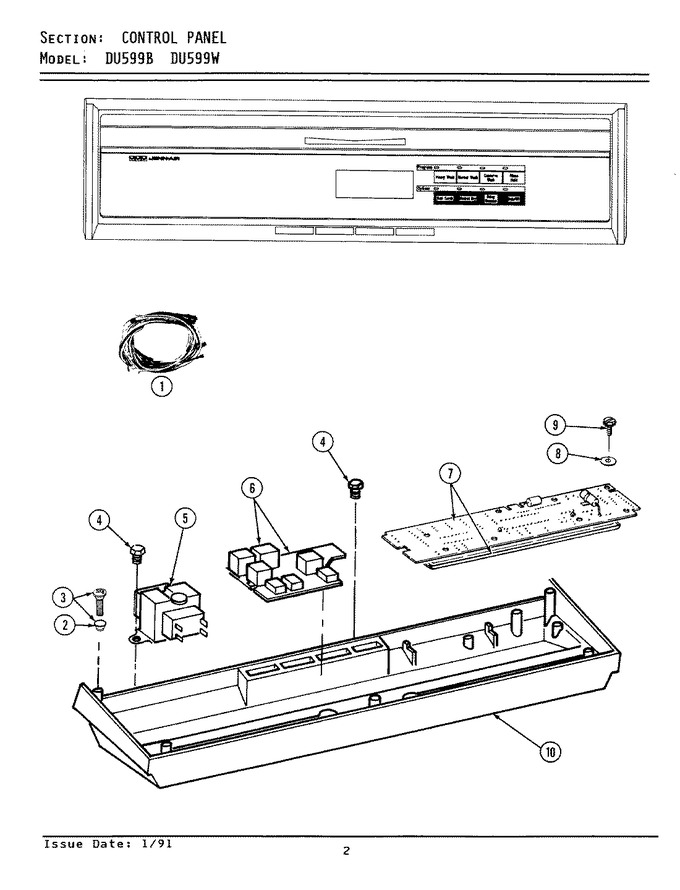

Diagram for DU599B
