Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 911780 Cover For Silverware Basket Appelez-nous -
2 901532 Silverware Basket With Cove Appelez-nous -
3 910390 Roller Appelez-nous -
4 911356 Washer Appelez-nous -
5 CC901 Rack Repair Kit   (Replaces: 902286) In-Stock Immediately $ 52.44

6 901836 Rack Roller Kit Appelez-nous -
7 901531 Rack, Cup Appelez-nous -
8 901527 Rack, Lower Appelez-nous -
9 902131 Rack, Adjustable (upper) Appelez-nous -
10 912098 Pivot Special Order $ 6.02

11 912099 Sleeve Special Order $ 5.04

12 902014 Rack, Saucer (left Hand) Appelez-nous -
13 902015 Saucer Rack - Right Appelez-nous -
14 902013 Rack, Bowl Appelez-nous -
15 900689 Track Shaft And Seal Kit Appelez-nous -
16 910053 Shaft, Rack Roller Appelez-nous -
17 911461 Washer Appelez-nous -
18 900669 Washer Appelez-nous -
19 Y052721 Nut Special Order $ 21.38

20 Y054858 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

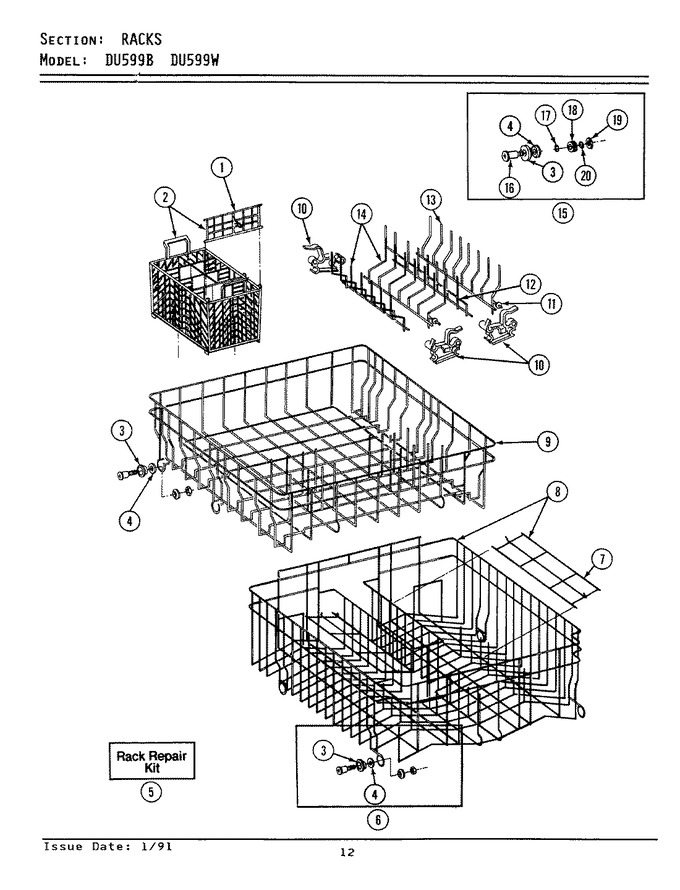

Diagram for DU599B
