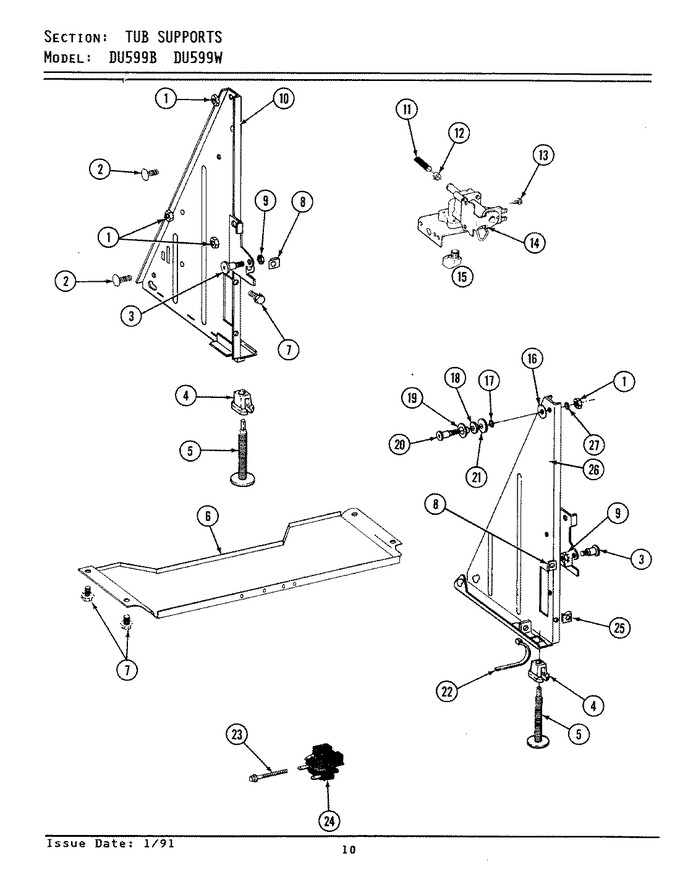

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y052721		Nut				$ 21.38
2	911917		Fastener, Insulation		Appelez-nous	-
3	910747		Hinge Pin		Appelez-nous	-
4	912447		Insert, Leg		Appelez-nous	-
5	WP233550		Leg, Adjustable   (Replaces: 910392)				$ 7.16
6	911231		Base, Frame		Appelez-nous	-
7	WP4312464		Screw   (Replaces: 912197)				$ 6.26
8	911765		U Type Fastener		Appelez-nous	-
9	WP3400029		Nut, Washered Lock   (Replaces: Y311426)			Immediately	$ 6.98
10	902769		Tub Support Assy Lh		Appelez-nous	-
11	911249		Injector Hose		Appelez-nous	-
12	WP596669		Clamp, Spring   (Replaces: 911856)			Immediately	$ 7.56
13	Y310632		Screw		Appelez-nous	-
14	902543		Water Valve				$ 88.06
15	901107		Street Elbow W/sealing Tape		Appelez-nous	-
16	911855		Washer		Appelez-nous	-
17	911461		Washer		Appelez-nous	-
18	911356		Washer		Appelez-nous	-
19	910390		Roller		Appelez-nous	-
20	910053		Shaft, Rack Roller		Appelez-nous	-
21	Y911355		Cushion Washer		Appelez-nous	-
22	WPW10339879		Strap, Cable   (Replaces: 912266)				$ 7.11
23	912381		Screw		Appelez-nous	-
24	902460		Relay,motor		Appelez-nous	-
25	910646		Fastener		Appelez-nous	-
26	902768		Tub Support Assy (right)		Appelez-nous	-
27	911852		Washer, Lock (brace)		Appelez-nous	-
