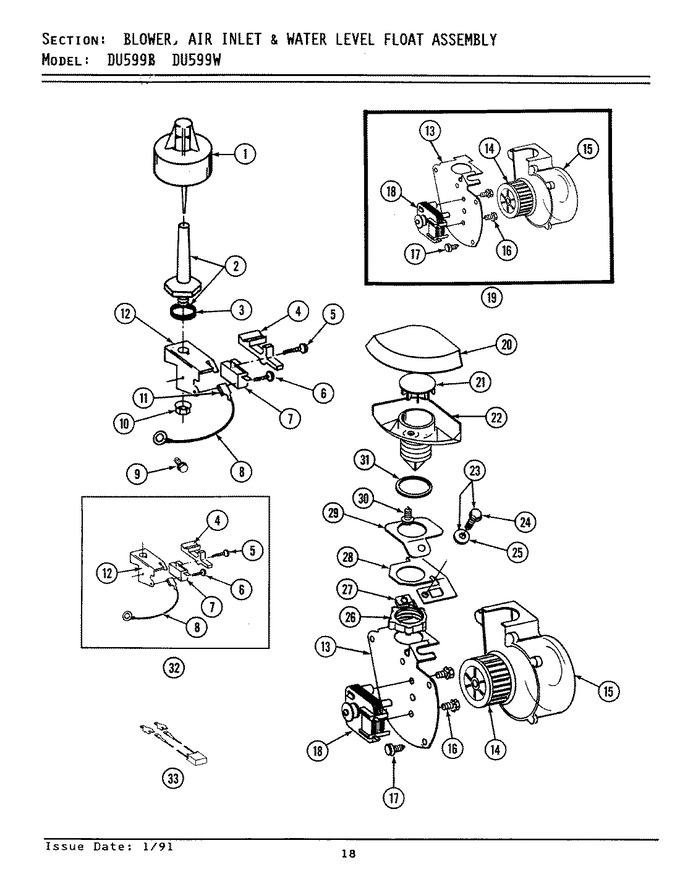

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 901141 | Float | 1 |
|
- | ||||
| 2 | 901114 | Float Guide With Gasket | 1 |
|
- | ||||
| 3 | 911244 | Gasket | 1 |
|
- | ||||
| 4 | 912014 | Lever, Actuator | 1 |
|
$ 52.13 | ||||
| 5 | 912015 | Pin, Lever Pivot | 1 |
|
- | ||||
| 6 | 912012 | Screw | 1 |
|
- | ||||
| 7 | 900882 | Switch, Water Level | 1 |
|
- | ||||
| 8 | 901858 | Ground Wire | 1 |
|
- | ||||
| 9 | WP4312464 | Screw (Replaces: 912197) | 1 |
|
$ 6.26 | ||||
| 10 | 911265 | Palnut, Float | 1 |
|
$ 5.83 | ||||
| 11 | 912016 | Receptacle | 1 |
|
- | ||||
| 12 | 912013 | Mounting Plate | 1 |
|
- | ||||
| 13 | 911579 | Blower Bracket | 1 |
|
- | ||||
| 14 | 901289 | Blower Wheel | 1 |
|
- | ||||
| 15 | 911577 | Blower Housing | 1 |
|
- | ||||
| 16 | 910683 | Screw | 1 |
|
- | ||||
| 17 | 911439 | Screw | 1 |
|
- | ||||
| 18 | 901290 | Blower Motor | 1 |
|
- | ||||
| 19 | 901392 | Blower Assembly | 1 |
|
- | ||||
| 20 | 911575 | Air Inlet Cap | 1 |
|
- | ||||
| 21 | 911775 | Blower Valve | 1 |
|
- | ||||
| 22 | 911595 | Air Inlet | 1 |
|
- | ||||
| 23 | 901587 | Screw And Washers Assembly | 1 |
|
- | ||||
| 24 | 911857 | Screw | 1 |
|
- | ||||
| 25 | 902283 | Washer | 1 |
|
- | ||||
| 26 | 911576 | Nut, Air Inlet | 1 |
|
- | ||||
| 27 | 310217 | No Longer Available | 1 |
|
- | ||||
| 28 | 911580 | Blower Support | 1 |
|
- | ||||
| 29 | 911813 | Pad, Blower Support | 1 |
|
- | ||||
| 30 | 911536 | Screw | 1 |
|
- | ||||
| 31 | 911578 | Gasket | 1 |
|
- | ||||
| 32 | 900911 | Float Switch & Bracket Assm | 1 |
|
- |
