Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 901433 Screw And Washer Assembly Appelez-nous -
2 912006 Washer Appelez-nous -
3 902887 Front Panel Appelez-nous -
4 912005 Grommet Appelez-nous -
5 912455 Insulation, Door Appelez-nous -
6 911875 Grounding Clip Appelez-nous -
7 WP4312464 Screw   (Replaces: 912197) Special Order $ 6.26

8 911945 Trim Strip - Left Hand Appelez-nous -
9 912011 Screw----na Appelez-nous -
10 902164 Lower Trim Kit Appelez-nous -
11 911946 Filler For Front Panel Appelez-nous -
12 911928 Insert-white/black Appelez-nous -
13 911944 Trim Strip - Right Hand Appelez-nous -
14 912457 Insulation, Access Panel Appelez-nous -
15 902798 Access Panel Appelez-nous -
16 910646 Fastener Appelez-nous -
17 911814 Screw Appelez-nous -
18 W11233072 Screw   (Replaces: 910647) In-Stock Immediately $ 12.62

19 911947 Filler For Access Panel Appelez-nous -
20 911929 Insert-white/black Appelez-nous -
21 911604 Trim For Access Panel Appelez-nous -
22 WP90767 Screw   (Replaces: 210587) In-Stock Immediately $ 7.04


    View Diagram in Separate Window     Print Icon   Print Part List

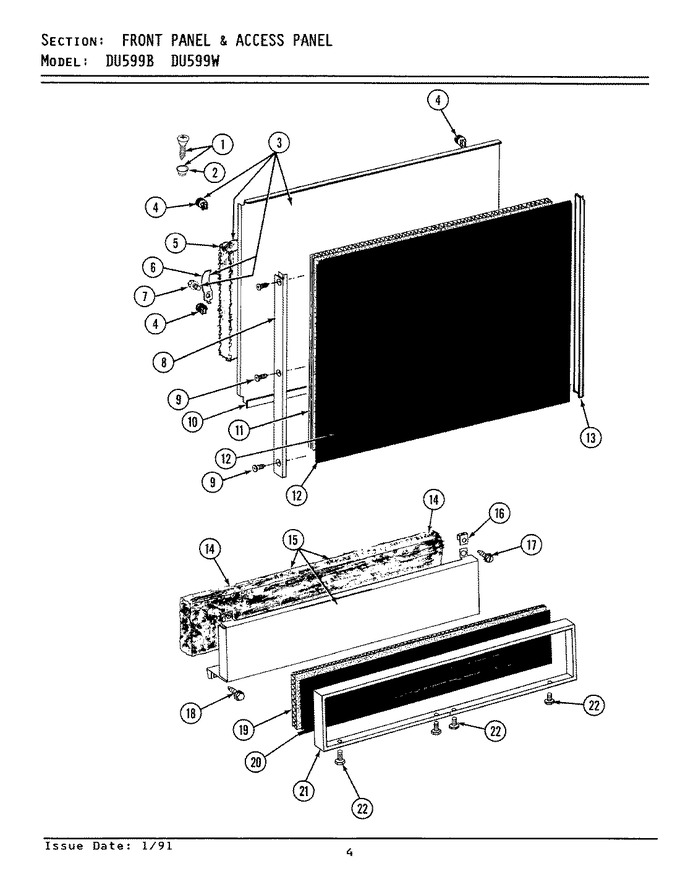

Diagram for DU599W
