Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 900020 Upper Spray Arm (w/nut) Appelez-nous -
2 911594 Outlet For Upper Spray Arm Appelez-nous -
3 911861 Nut Appelez-nous -
4 901304 Tub Assembly Appelez-nous -
5 901090 Screw And Washer Assembly Appelez-nous -
6 WP3400094 Screw   (Replaces: 911665) Special Order $ 7.14

7 911356 Washer Appelez-nous -
8 WPW10139210 Screw   (Replaces: 910624) Special Order $ 6.75

9 901586 Top Spray Hose W/coupling Appelez-nous -
10 911582 Strike Appelez-nous -
11 911941 Top Flange Channel Appelez-nous -
12 902888 Top Flange Assy Appelez-nous -
13 WPW10223013 Insulation   (Replaces: 912456) Special Order $ 83.60

14 911401 Hole Plug Appelez-nous -
15 911917 Fastener, Insulation Appelez-nous -
16 910567 Washer Appelez-nous -
16 SC1002 Screws,washers & Shield Ass   (Replaces: 901303) In-Stock Immediately $ 87.61

16 910604 Screw Appelez-nous -
17 901965 Thermostat Appelez-nous -
17 902885 Thermostat Appelez-nous -
18 WP4312464 Screw   (Replaces: 911050) Special Order $ 6.26

19 Y911235 Bracket, Thermostat Appelez-nous -
20 910564 Insulating Bushing Appelez-nous -
21 911386 Terminal Compartment Appelez-nous -
22 W11233072 Screw   (Replaces: 910647) In-Stock Immediately $ 12.62

23 911232 Panel, Toe Appelez-nous -
24 911766 Label Appelez-nous -
24 911221 Cover, Terminal Appelez-nous -
25 W10850756 Screw & Washer Assy.   (Replaces: 303846) Special Order $ 6.98

26 4396672 Clamp, Cable   (Replaces: 400321) In-Stock Immediately $ 17.38

27 910180 Jam Nut Appelez-nous -
28 910603 Washer, Heating Element Appelez-nous -
29 911268 Fastener Appelez-nous -
30 900871 Heating Element Appelez-nous -
31 911610 Vent Cover Appelez-nous -
32 WP596669 Clamp, Spring   (Replaces: 911856) In-Stock Immediately $ 7.56

33 911249 Injector Hose Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

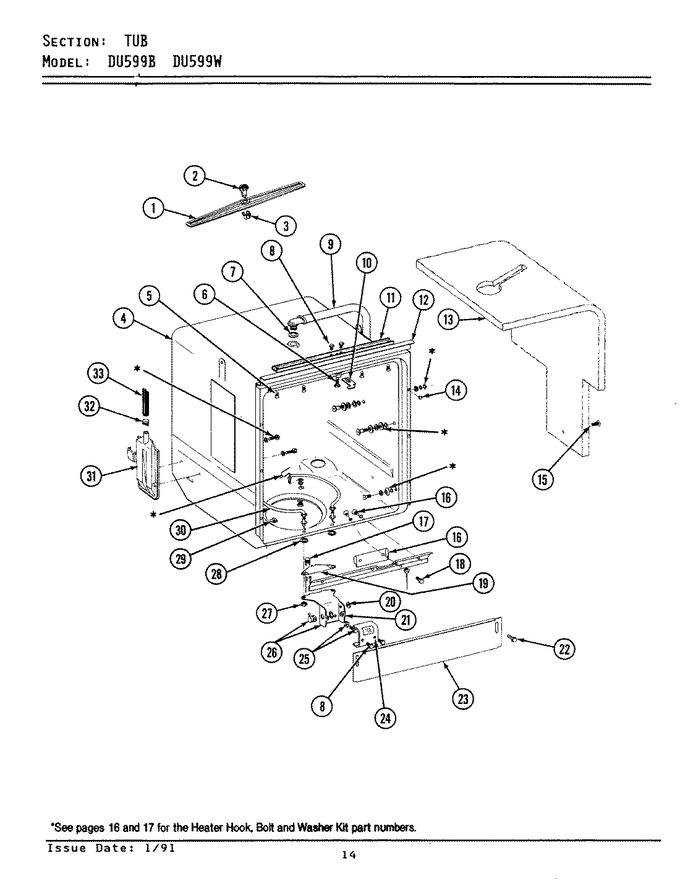

Diagram for DU599W
