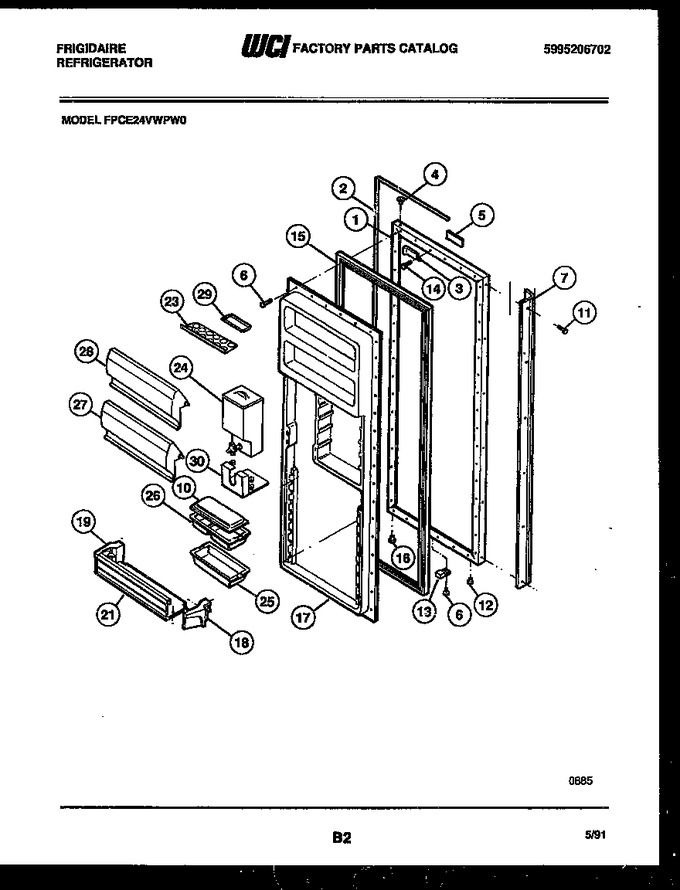

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916629		Panel-refr, White		Appelez-nous	-
2	3200671		Trim-door		Appelez-nous	-
3	5303200272		Closer-door		Appelez-nous	-
4	5303001022		Bearing-hinge		Appelez-nous	-
5	3201581		Nameplate Assy		Appelez-nous	-
6	5308002748		Screw		Appelez-nous	-
7	5303273122		Handle Assy-refr-white		Appelez-nous	-
10	5303200414		Lid-micro Dish (3)		Appelez-nous	-
11	5303272566		Screw-white (4)		Appelez-nous	-
12	5315230801		Plug-button		Appelez-nous	-
13	5308000790		Bumper, Light Switch				$ 3.86
14	5303001020		Screw		Appelez-nous	-
15	5303200273		Gasket-refr		Appelez-nous	-
16	5308012007		Bearing-hinge		Appelez-nous	-
17	3200672		Panel-inner		Appelez-nous	-
18	5303206684		Support-shelf Rh (3)		Appelez-nous	-
19	5303206685		Support-shelf Lh (3)		Appelez-nous	-
21	5303206704		Shelf-door (3)		Appelez-nous	-
23	5303018932		Tray-egg		Appelez-nous	-
24	5303200416		Beverage Center		Appelez-nous	-
25	5303200412		Dish, Microwave Single (2)		Appelez-nous	-
26	5303200413		Dish, Microwave Double		Appelez-nous	-
27	3200415		Door-compartment		Appelez-nous	-
28	5303200442		Door-compartment		Appelez-nous	-
29	5303018743		Dish, Butter		Appelez-nous	-
30	5303200676		Shelf-beverage Ctr		Appelez-nous	-
*46283	3200675		Snugger-finger		Appelez-nous	-
*46283	5303007739		Insulation, Bulk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
