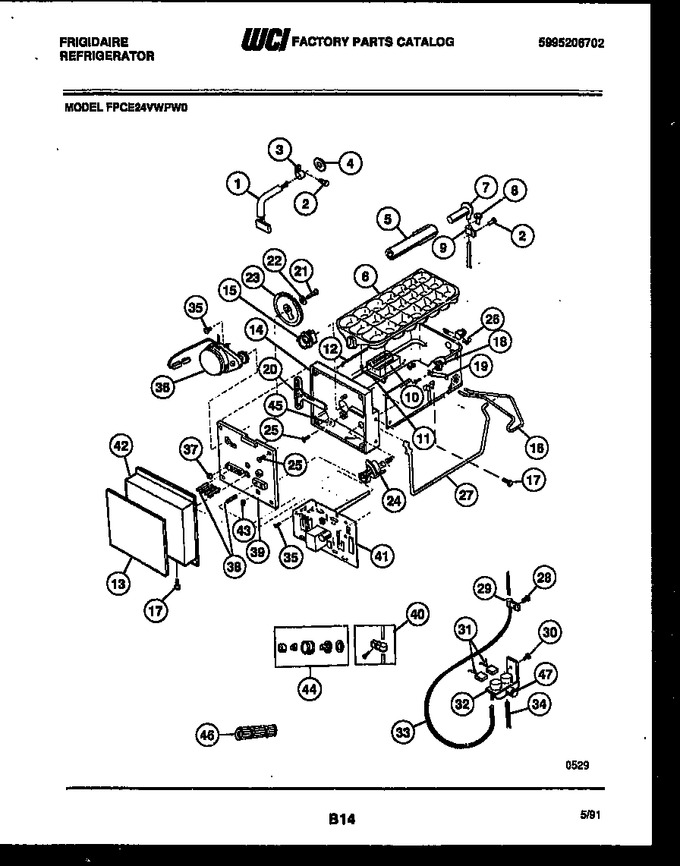

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001245 | Wiring Harness-ice Maker (upper) |
|
- | |||||
| 2 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 3 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 4 | 5303001147 | Plug-harness Hole |
|
$ 22.30 | |||||
| 5 | 5308015765 | Tube-filler Extension |
|
- | |||||
| 6 | 5302832432 | Ice Tray |
|
$ 71.72 | |||||
| 7 | 5308010269 | Tube-filler |
|
- | |||||
| 8 | 5303001191 | Sleeve-tube Insert |
|
$ 6.72 | |||||
| 9 | 5303001193 | Clamp-tube |
|
$ 16.30 | |||||
| 10 | 5303001141 | Insulator |
|
$ 23.52 | |||||
| 11 | 5301138379 | Retainer-insulator |
|
$ 3.89 | |||||
| 12 | 5301138166 | Frame-ice Maker |
|
- | |||||
| 13 | 08010354 | Label-ice Maker |
|
- | |||||
| 14 | 5303001143 | Housing-ice Maker |
|
- | |||||
| 15 | 5301124972 | Gear-sliding Spur |
|
- | |||||
| 16 | 5301138222 | Wire-shut Off |
|
- | |||||
| 17 | 5303001020 | Screw (5) |
|
- | |||||
| 18 | 5301121693 | Pushnut |
|
- | |||||
| 19 | 5301121700 | Spring-tray |
|
- | |||||
| 20 | 5303001136 | Rack-gear |
|
- | |||||
| 21 | 5303001119 | Shaft-crank Gear |
|
- | |||||
| 22 | 5303001117 | Washer-crank Shaft |
|
- | |||||
| 23 | 5301124984 | Gear-crank |
|
- | |||||
| 24 | 5301124983 | Cam-ice Level |
|
- | |||||
| 25 | 5308010350 | Screw (5) |
|
- | |||||
| 26 | 5303001132 | Spring-tray Return |
|
- | |||||
| 27 | 5301124988 | Sensing Arm |
|
- | |||||
| 28 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 29 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 30 | 5308000039 | Screw |
|
- | |||||
| 31 | 5308017050 | Wiring Harness-ice & Water (lower) |
|
- | |||||
| 32 | 5308017599 | Water Valve Solenoid |
|
$ 67.90 | |||||
| 33 | 5303015131 | Tube-valve To Filler Tube |
|
- | |||||
| 34 | 5303015130 | Tube-valve To Tank |
|
- | |||||
| 35 | 3001115 | Screw (5) |
|
- | |||||
| 36 | 5301124982 | Motor-ice Maker |
|
- | |||||
| 37 | 5303001118 | Nut - Hex 10-32 Lh |
|
- | |||||
| 38 | 5301124987 | Follower-cam (pin) |
|
- | |||||
| 39 | 5301124981 | Plate-mounting |
|
- | |||||
| 40 | 5304455846 | Clamp-copper Tube (Replaces: 5303001549) |
|
$ 10.63 | |||||
| 41 | 5308011238 | Pc Board |
|
- | |||||
| 42 | 3017845 | Front-ice Maker |
|
- | |||||
| 43 | 5308010348 | Retainer Ring |
|
- | |||||
| 44 | 3206360 | Water Supply Adapter Kit |
|
$ 94.66 | |||||
| 45 | 5301124979 | Washer |
|
- | |||||
| 46 | 5300158163 | Union Assembly |
|
- | |||||
| 47 | 5303015102 | Cap-water Valve |
|
- | |||||
| *46300 | 5300618683 | Pivot-tray |
|
- | |||||
| *46300 | 5301123459 | Bearing-gauge Arm |
|
- | |||||
| *46300 | 5303001139 | Spring-sensing Arm |
|
- | |||||
| *46300 | 5300175135 | Extension-frame |
|
- | |||||
| *46300 | 5308012819 | Screw-im Mtg |
|
- | |||||
| *46300 | 5308012818 | Guide-i.m. Screw |
|
- | |||||
| *46300 | 5303001216 | Washer-nylon Im Screw |
|
- | |||||
| 16A | 5303001125 | Retainer-shut Off Wire (non-illustrated) |
|
- | |||||
| 16B | 5301124979 | Washer (non-illustrated) |
|
- | |||||
| 18A | 5301121694 | Screw (non-illustrated) |
|
- | |||||
| 27A | 5301138171 | Retaining Ring (non-illustrated) |
|
- | |||||
| 40A | 5308000039 | Screw |
|
- |
