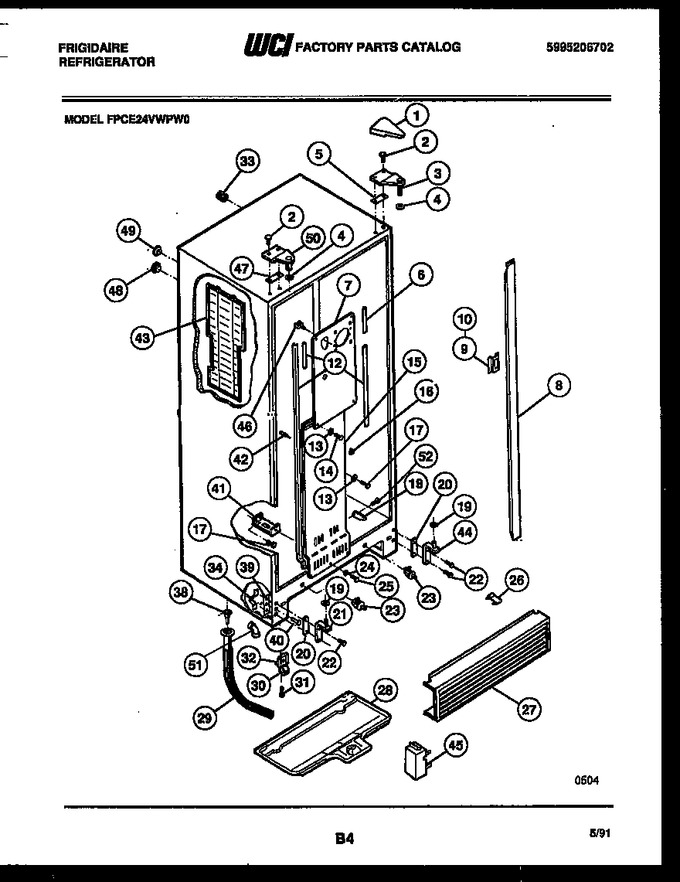

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012820 | Cover-top Hinge-white (2) |
|
- | |||||
| 2 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 3 | 5308012934 | Hinge-upper-rh |
|
- | |||||
| 4 | 5308000186 | Washer-nylon (2) |
|
Immediately | $ 6.02 | ||||
| 5 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 6 | 5303001219 | Gasket-coil Cover (2) |
|
- | |||||
| 7 | 5303001222 | Cover-coil Upper |
|
- | |||||
| 8 | 5303916444 | Mullion-white |
|
- | |||||
| 9 | 5300169100 | Clip-mullion (3) |
|
- | |||||
| 10 | 5303001281 | Clip-mullion (3) |
|
- | |||||
| 12 | 5308950175 | Gasket (3) |
|
- | |||||
| 13 | 5303001216 | Washer-nylon (7) |
|
- | |||||
| 14 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 15 | 5308000823 | Cover-coil Lower |
|
- | |||||
| 16 | 5303001231 | Clip-grounding |
|
- | |||||
| 17 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 18 | 5316491203 | Damper, Meat Keeper |
|
- | |||||
| 19 | 5303001038 | Washer-nylon |
|
$ 13.34 | |||||
| 20 | 5303001272 | Shim-lower Hinge (3) |
|
- | |||||
| 21 | 5303001043 | Hinge-lower Lh |
|
- | |||||
| 22 | 5303001041 | Screw (3) |
|
- | |||||
| 23 | 5309918810 | Switch (2) |
|
- | |||||
| 24 | 5308009617 | Washer-ext Lock (2) |
|
- | |||||
| 25 | 5303001230 | Screw |
|
- | |||||
| 26 | 5308000847 | Clip-grille |
|
$ 5.39 | |||||
| 27 | 3200764 | Grille-lower Front |
|
- | |||||
| 28 | 5303001026 | Pan-defrost |
|
- | |||||
| 29 | 5303209723 | Tube-drain |
|
- | |||||
| 30 | 5308000118 | Roller Assy-adj (4) |
|
- | |||||
| 31 | 5308017044 | Screw (6) |
|
$ 6.34 | |||||
| 32 | 5308009568 | Screw-adj Roller (4) |
|
- | |||||
| 33 | 5303001198 | Tube-rubber |
|
- | |||||
| 34 | 5300077210 | Nut-speed (2) |
|
- | |||||
| 38 | 5308000853 | Conductor-heat |
|
- | |||||
| 39 | 5303001273 | Nut-spec Twin (4) |
|
- | |||||
| 40 | 5308000013 | Pin-shoulder (2) |
|
- | |||||
| 41 | 5308000738 | Bracket-cvr Mtg |
|
- | |||||
| 42 | 5303001250 | Support-coil Cover (4) |
|
- | |||||
| 43 | 5308010353 | Divider-icemaker |
|
- | |||||
| 44 | 5303001271 | Hinge-lower Rh |
|
$ 102.38 | |||||
| 45 | 5317465801 | Cover-hinge |
|
- | |||||
| 46 | 5308000097 | Support-coil Cvr |
|
- | |||||
| 47 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 48 | 5303001286 | Ferrule-inner (2) |
|
- | |||||
| 49 | 5303001287 | Ferrule-outer (2) |
|
- | |||||
| 50 | 5303001062 | Hinge-upper Lh |
|
$ 117.02 | |||||
| 51 | 5308010289 | Elbow-water Tube |
|
$ 45.84 | |||||
| 52 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *46287 | 5303001147 | Plug-ham Hole (frzr) |
|
$ 22.30 | |||||
| *46287 | 5308012296 | Plate-tapping (2) |
|
$ 47.44 | |||||
| 45A | 5308010292 | Screw (non-illustrated) |
|
- | |||||
| 45B | 5308010293 | Nut-push In (non-illustrated) |
|
- | |||||
| 51A | 5308000200 | Nut-nylon (2) (non-illustrated) |
|
- | |||||
| 7A | 5303209814 | Nut-``u`` Type (non-illustrated) |
|
- | |||||
| 7B | 5303208309 | Plug-short Test Hole (non-illustrated) |
|
$ 45.50 |
