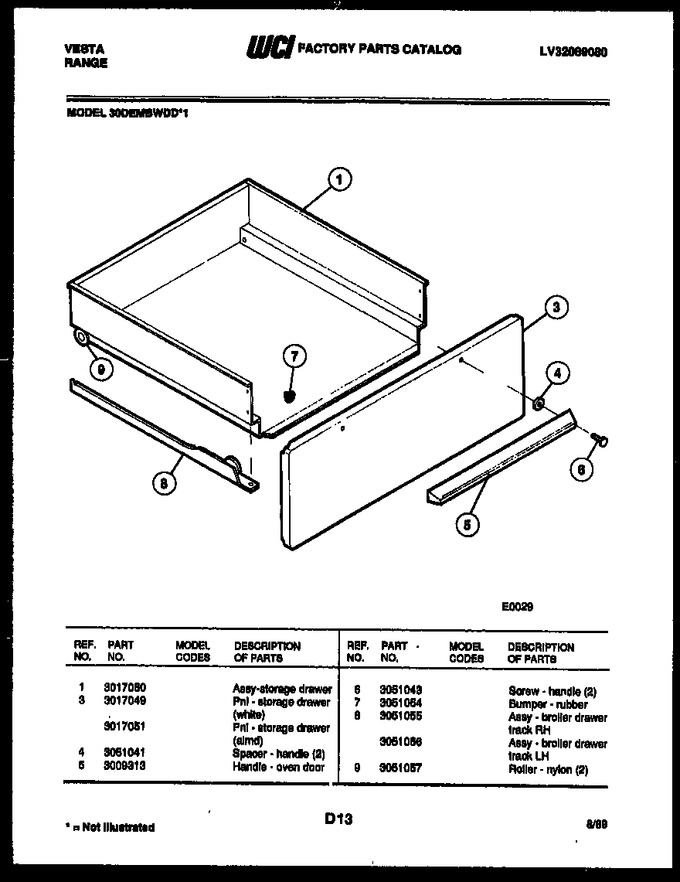

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017050 | Assy-storage Drawer |
|
- | |||||
| 3 | 3017051 | Pnl - Storage Drawer (almd) |
|
- | |||||
| 4 | 3051041 | Spacer Handle (2) |
|
- | |||||
| 5 | 3009313 | Handle Oven Door |
|
- | |||||
| 6 | 3051043 | Screw - Handle (2) |
|
- | |||||
| 7 | 3051054 | Bumper Rubber |
|
- | |||||
| 8 | 3051055 | Assy - Broiler Drawer Track Rh |
|
- | |||||
| 9 | 3051057 | Roller - Nylon (2) |
|
- | |||||
| 8A | 3051056 | Assy - Broiler Drawer Track Lh |
|
- |
