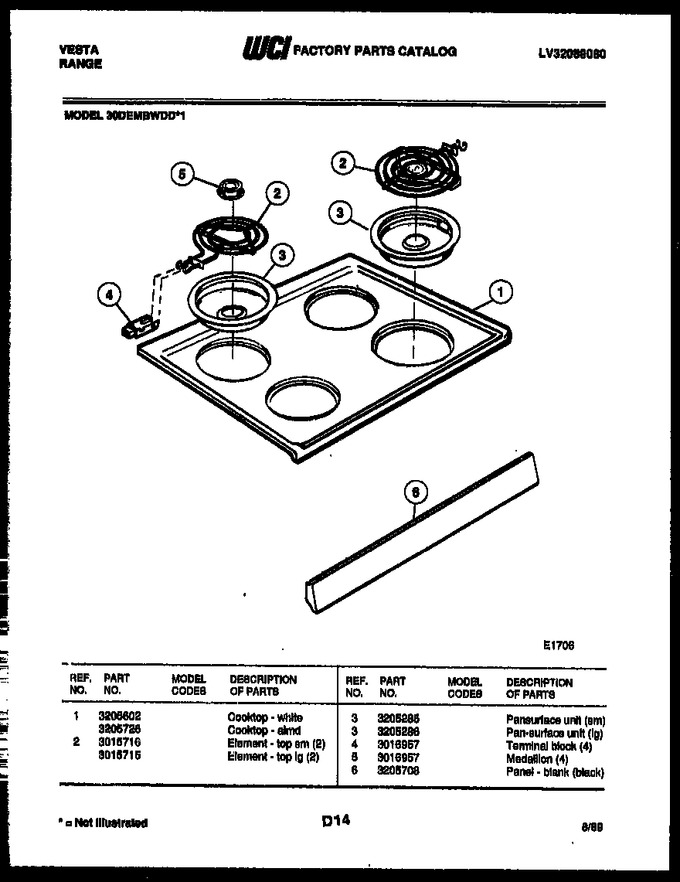

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205726 | Cooktop - Almd |
|
- | |||||
| 2 | 3015716 | Element - Top Sm (2) |
|
- | |||||
| 3 | 3205286 | Pan-surface Unit (lg) |
|
- | |||||
| 3 | 3205285 | Pansurface Unit (sm) |
|
- | |||||
| 4 | 3016957 | Terminal Block ( 4 ) |
|
- | |||||
| 5 | 3016957 | Medallion (4) |
|
- | |||||
| 6 | 3205708 | Panel - Blank (black) |
|
- | |||||
| 2A | 3015715 | Element - Top Lg (2) |
|
- |
