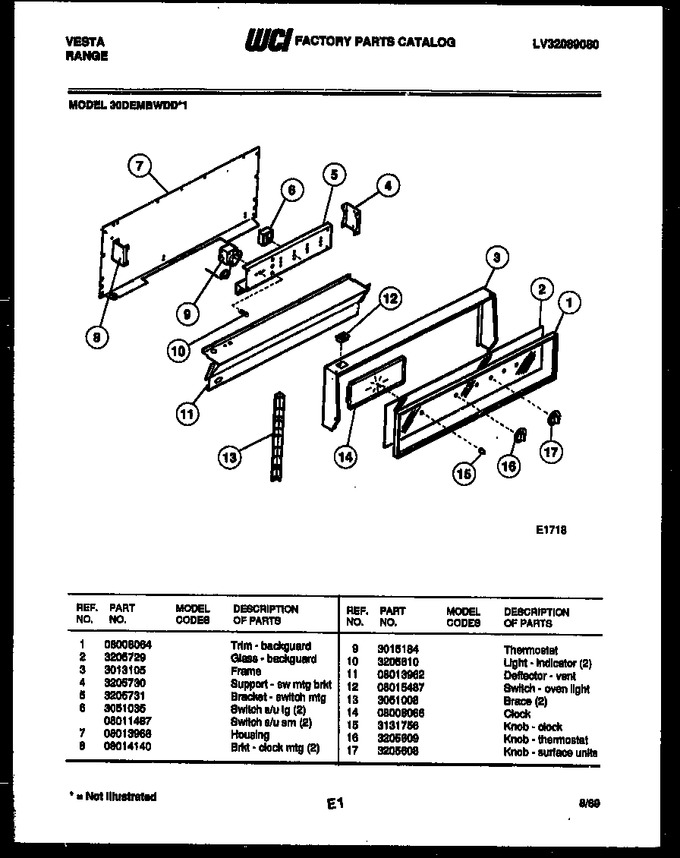

06 - Backguard


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08008064		Trim Backguard		Appelez-nous	-
2	3205729		Glass - Backguard		Appelez-nous	-
3	3013105		Frame		Appelez-nous	-
4	3205730		Support - Sw Mtg Brkt		Appelez-nous	-
5	3205731		Bracket - Switch Mtg		Appelez-nous	-
6	3051035		Switch S/u Lg. (2)		Appelez-nous	-
7	08013966		Housing		Appelez-nous	-
8	08014140		Brkt - Clock Mtg (2)		Appelez-nous	-
9	3015184		Thermostat		Appelez-nous	-
10	3205610		Light - Indicator (2)		Appelez-nous	-
11	08013962		Deflector - Vent		Appelez-nous	-
12	08015487		Switch - Oven Light		Appelez-nous	-
13	3051008		Brace (2)		Appelez-nous	-
14	08008066		Clock		Appelez-nous	-
15	3131756		Knob - Clock		Appelez-nous	-
16	3205609		Knob - Thermostat		Appelez-nous	-
17	3205608		Knob - Surface Units		Appelez-nous	-
6A	08011487		Switch-s/u Sm (2)		Appelez-nous	-
