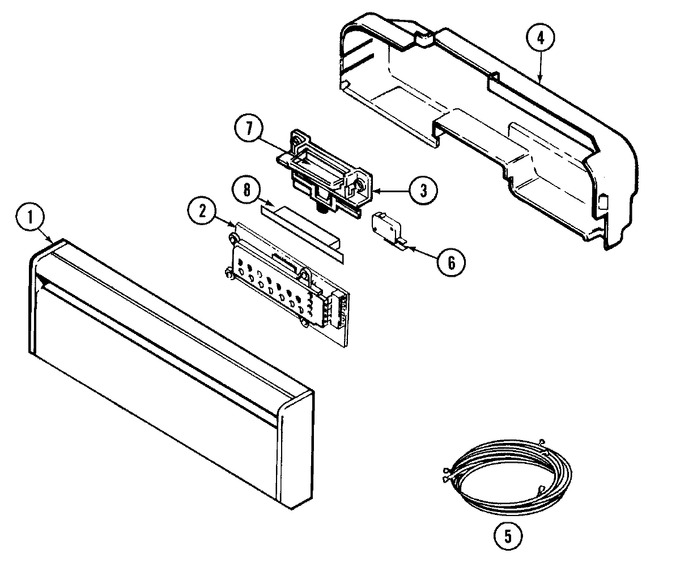

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
1	99001322		Panel, Control (wht)	10	Appelez-nous	-
2	913180		Shield, Control	10	Appelez-nous	-
2	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	99001232		Pcb Plate & Mounting Assy.	10	Appelez-nous	-
3	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
3	99002254		Holder, Door Switch   (Replaces: 99001077)	10			$ 116.79
4	99001190		Barrier, Control Panel	10	Appelez-nous	-
5	99001314		Wire Harness, Main	10	Appelez-nous	-
5	Y913176		Clip, Wire Harness	10	Appelez-nous	-
6	99002254		Switch, Door   (Replaces: 903086)	10			$ 116.79
7	W10834433		Handle, Latch (wht)   (Replaces: 99001079)	10		Immediately	$ 108.37
8	99001197		Liner, Handle Hole	10	Appelez-nous	-
9	16000327		Guide, Quick Ref. - Maytag	10	Appelez-nous	-
9	99001316		Manual, Use & Care	10	Appelez-nous	-
9	99001317		Manual, Use & Care (french)	10	Appelez-nous	-
