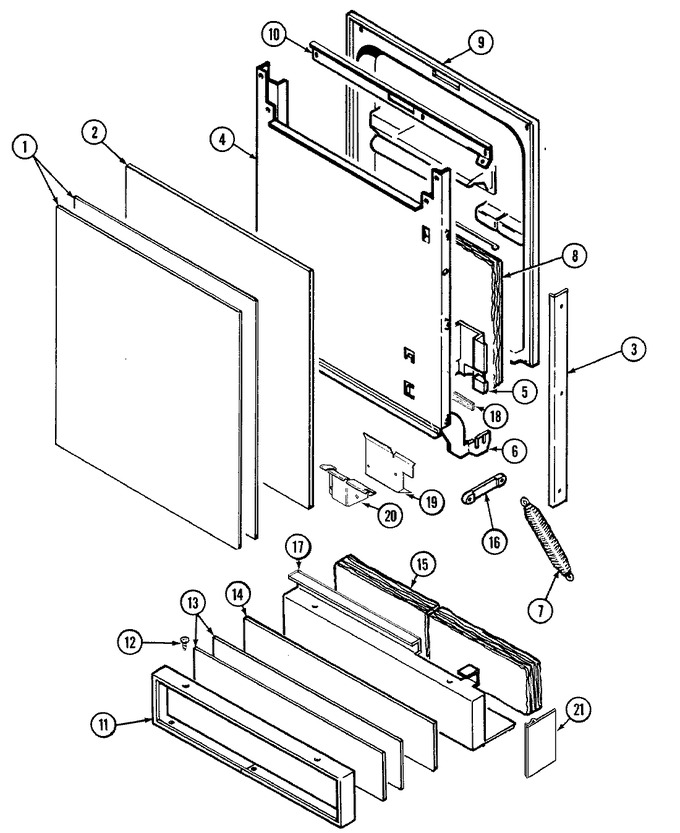

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 912520 | Insert, Front Panel (wht/blk) | 10 |
|
$ 48.54 | ||||
| 1 | 99001101 | Trim, Panel (lwr-wht) | 10 |
|
- | ||||
| 2 | 912521 | Filler, Front Panel | 10 |
|
- | ||||
| 3 | 99001109 | Trim, Door (wht) | 10 |
|
- | ||||
| 3 | 99001108 | Screw, Trim Strip (wht) | 10 |
|
- | ||||
| 4 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 4 | WPW10339879 | Strap, Cable (Replaces: 912266) | 10 |
|
$ 7.11 | ||||
| 4 | 903821 | Door, Outer | 10 |
|
- | ||||
| 5 | Y912666 | Retainer, Wire | 10 |
|
- | ||||
| 5 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 6 | 99001075 | Screw | 10 |
|
$ 5.81 | ||||
| 6 | 903070 | Hinge (lt) | 10 |
|
- | ||||
| 6 | 903071 | Hinge (rt) | 10 |
|
- | ||||
| 7 | WP912652 | Spring, Door (Replaces: 912652) | 10 |
|
Immediately | $ 9.00 | |||
| 8 | 99001215 | Damper, Sound (top) | 10 |
|
- | ||||
| 8 | 99001103 | Insulation, Door | 10 |
|
- | ||||
| 8 | Y912751 | Damper, Sound (btm) | 10 |
|
- | ||||
| 9 | 99001104 | Seal, Vent | 10 |
|
- | ||||
| 9 | 99001067 | Door, Inner (w/damper) | 10 |
|
- | ||||
| 9 | Y912620 | Screw | 10 |
|
$ 5.48 | ||||
| 9 | 99001212 | Back, Vent | 10 |
|
- | ||||
| 10 | Y912668 | Bar, Reinforcement | 10 |
|
- | ||||
| 11 | 99001192 | Trim, Access Panel (wht) | 10 |
|
- | ||||
| 12 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 12 | 99001193 | Screw, Trim (top) | 10 |
|
- | ||||
| 14 | 912525 | Filler, Access Panel | 10 |
|
- | ||||
| 15 | 99001195 | Insulation, Access Panel | 10 |
|
- | ||||
| 16 | WP912653 | Link, Door Spring (Replaces: 912653) | 10 |
|
Immediately | $ 7.45 | |||
| 17 | 99001188 | Panel, Access (wht) | 10 |
|
- | ||||
| 17 | 99001205 | Seal, Access Panel | 10 |
|
- | ||||
| 17 | 99001194 | Screw, Access Panel | 10 |
|
$ 6.18 | ||||
| 18 | 903233 | Foam Strip, Insulation | 10 |
|
- | ||||
| 19 | 99001131 | Shield, Tub (wht) | 10 |
|
- | ||||
| 19 | WP6-912366 | Screw (Replaces: 912366) | 10 |
|
$ 7.29 | ||||
| 20 | 99001132 | Cover, Wire (wht) | 10 |
|
- | ||||
| 20 | 99001194 | Screw, Access Panel | 10 |
|
$ 6.18 | ||||
| 21 | 99001202 | Barrier (wht) | 10 |
|
- |
