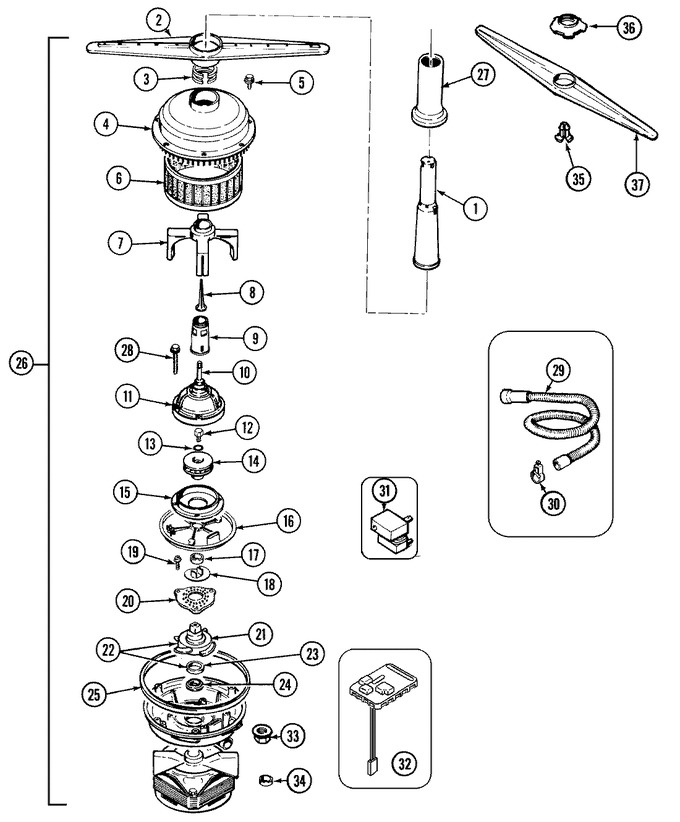

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	912646		Nozzel, Jump Up	10			$ 18.92
2	903473		Spray Arm W/sheilds (lower)	10	Appelez-nous	-
3	912313		Ring, Seal	10			$ 33.76
4	912536		Strainer	10	Appelez-nous	-
5	912622		Screw	10	Appelez-nous	-
6	912328		Filter	10	Appelez-nous	-
7	99001222		Arm Assy., Rinse (w/sensor)	10	Appelez-nous	-
8	912316		Nut	10	Appelez-nous	-
9	Y912658		Support, Wash Arm	10	Appelez-nous	-
10	912314		Wash Arm Support Shaft	10	Appelez-nous	-
11	912321		Discharge Housing (upr)	10	Appelez-nous	-
12	910654		Screw, Impeller	10			$ 6.05
13	910934		Seal, O-ring	10			$ 5.83
14	WP902461		Impeller Assembly   (Replaces: 902461)	10			$ 56.39
15	912323		Plate, Suction	10	Appelez-nous	-
16	912657		Support, Filter	10	Appelez-nous	-
17	912510		O-ring	10			$ 5.75
18	912310		Disc, Cutter	10			$ 5.22
19	61002031		Screw   (Replaces: 99001081)	10			$ 41.36
20	912309		Plate, Chopper	10	Appelez-nous	-
21	912317		Drain Impeller	10	Appelez-nous	-
22	WP902875		Drain Impeller Assy   (Replaces: 902875)	10			$ 3.71
23	902883		Seal Seat Assy	10	Appelez-nous	-
24	902882		Seal, Pump	10			$ 28.18
25	912529		Gasket, Pump	10			$ 35.78
26	WPW10339879		Strap, Cable   (Replaces: 912266)	10			$ 7.11
26	99001233		Motor & Pump (complete)	10	Appelez-nous	-
27	912518		Nozzle, Lower	10			$ 7.90
28	912383		Screw	10	Appelez-nous	-
29	WPY913158		Hose, Drain   (Replaces: 912540)	10		Immediately	$ 33.65
30	WP616099		Clamp, Hose (1 1/4``)   (Replaces: 904030)	10		Immediately	$ 7.03
31	902460		Relay,motor	10	Appelez-nous	-
32	99001225		Cluster, Sensor	10	Appelez-nous	-
33	912645		Nut, Heating Element	10	Appelez-nous	-
34	Y913079		O-ring, Heater	10			$ 5.83
35	Y912681		Retainer, Snap Spray	10	Appelez-nous	-
36	912680		Outlet, Snap	10			$ 22.87
37	903079		Spray Arm Assembly (upr)	10			$ 31.26
