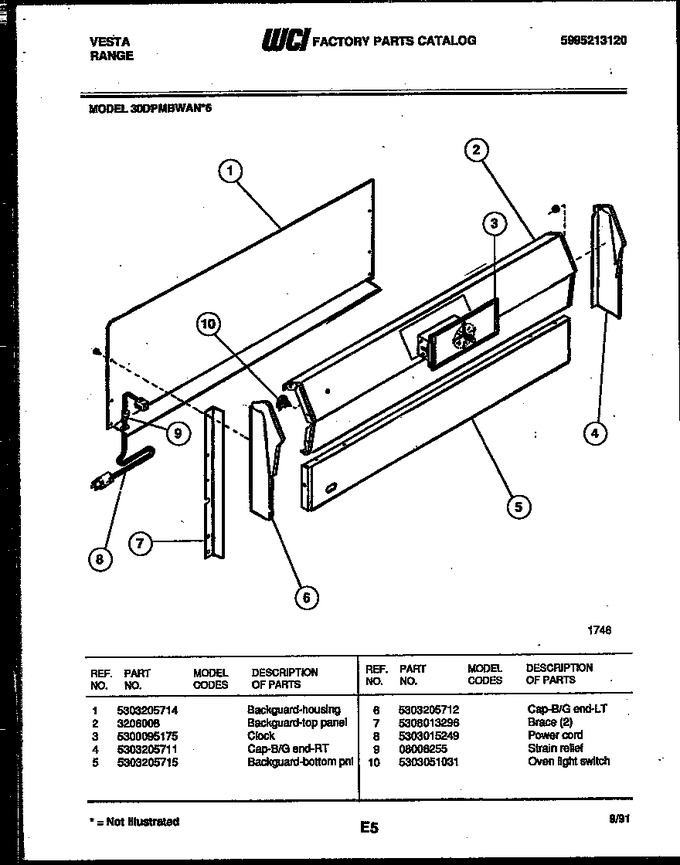

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303205714 | Backguard-housing |
|
- | |||||
| 2 | 3206008 | Backguard-top Panel |
|
- | |||||
| 3 | 5300095175 | Clock |
|
- | |||||
| 4 | 5303205711 | Cap-b/g End-rt |
|
- | |||||
| 5 | 5303205715 | Backguard-bottom Pnl |
|
- | |||||
| 6 | 5303205712 | Cap-b/g End-lt |
|
- | |||||
| 7 | 5308013296 | Brace (2) |
|
- | |||||
| 8 | 5303015249 | Power Cord |
|
- | |||||
| 9 | 08008255 | Strain - Relief |
|
- | |||||
| 10 | 5303051031 | Oven Light Switch |
|
- |
