02 - Backguard


03 - Cooktop Parts


04 - Burner, Manifold And Gas Control


05 - Body Parts


06 - Door Parts


07 - Broiler Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205587		Grommet-maintop		Appelez-nous	-
2	3051063		Grommet Plastic		Appelez-nous	-
3	5303051061		B/s Panel-white		Appelez-nous	-
4	3017174		Bottom Burner Box		Appelez-nous	-
5	3131811		Supt-control Panel		Appelez-nous	-
6	3205578		Front Frame-bronze		Appelez-nous	-
7	5308008022		Seal,oven Door				$ 124.89
8	5303204672		Hinge Assy-lh		Appelez-nous	-
9	5308008028		Spring-oven Door (2)		Appelez-nous	-
10	3018284		Liner-rt Side		Appelez-nous	-
11	5303015714		Rack Oven (2)		Appelez-nous	-
12	3018282		Liner-bottom		Appelez-nous	-
13	3131038		Support-oven Bottom		Appelez-nous	-
14	318175510		Screw-leveling Leg   (Replaces: 5303210257)			Immediately	$ 24.26
15	5303210255		Base Rail Rh		Appelez-nous	-
16	40A15		Bulb, Oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
17	316116400		Recept-oven Light   (Replaces: 5308011085)			Immediately	$ 56.10
19	3011645		Bottom - Main		Appelez-nous	-
20	3017171		Insulation - Wrap		Appelez-nous	-
21	3051096		Support,oven Rear		Appelez-nous	-
22	3131046		Channel - Wire		Appelez-nous	-
23	5303209931		Spark Module		Appelez-nous	-
24	08013953		Cover-spark Module		Appelez-nous	-
25	5303013340		Back-main		Appelez-nous	-
26	3017173		Vent Box		Appelez-nous	-
27	5303131053		Shield-burner Box Rt		Appelez-nous	-
*59595	3934059		Anti - Tip Bracket		Appelez-nous	-
*59596	19100180271		Wiring Diagram-(not For Purchase)		Appelez-nous	-
10A	3018285		Liner-lt Side		Appelez-nous	-
10B	3018347		Liner - Top		Appelez-nous	-
10C	3018286		Liner-back		Appelez-nous	-
15A	5303210256		Base Rail Lh		Appelez-nous	-
20A	3017172		Insulation - Back		Appelez-nous	-
27A	5303131054		Shield-burner Box Lt		Appelez-nous	-
8A	5303204670		Hinge Assy-rh		Appelez-nous	-

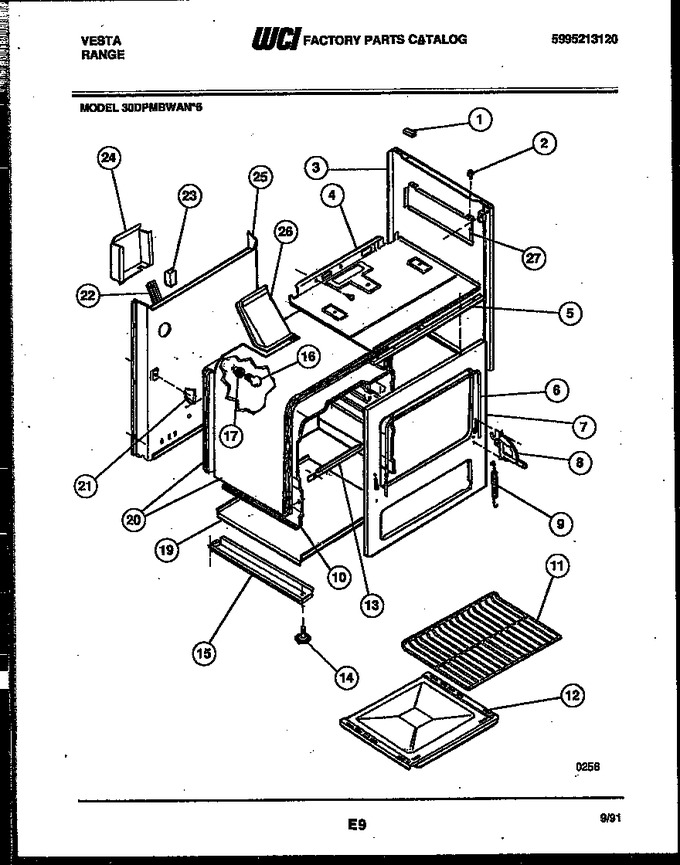

    View Diagram in Separate Window       Print Part List
