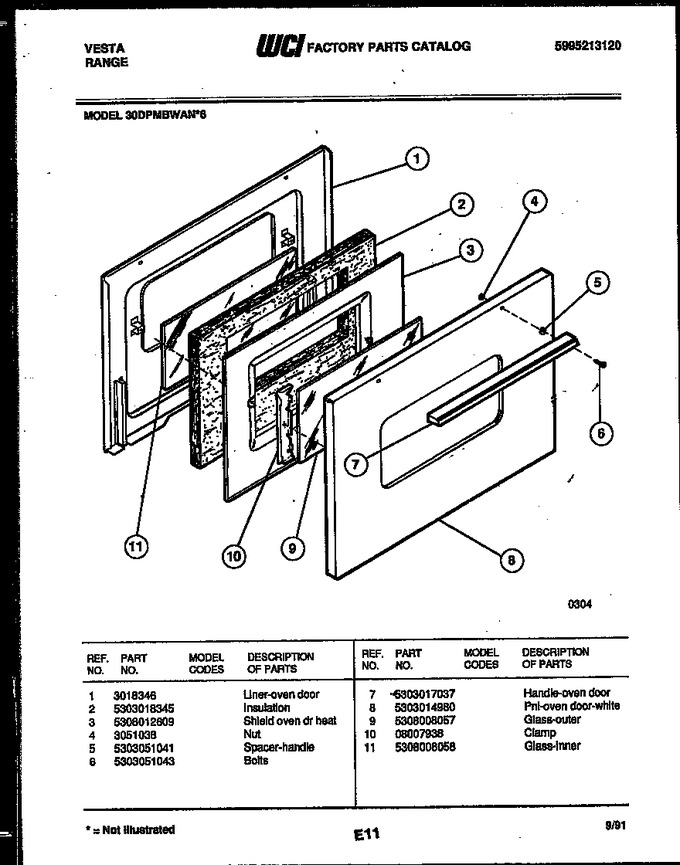

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018346 | Liner-oven Door |
|
- | |||||
| 2 | 5303018345 | Insulation |
|
- | |||||
| 3 | 5308012609 | Shield Oven Dr Heat |
|
- | |||||
| 4 | 3051038 | Nut |
|
- | |||||
| 5 | 5303051041 | Spacer Handle |
|
- | |||||
| 6 | 5303051043 | Bolts |
|
- | |||||
| 7 | 5303017037 | Handle-oven Door |
|
- | |||||
| 8 | 5303014980 | Pnl-oven Door-white |
|
- | |||||
| 9 | 5308008057 | Glass-outer |
|
- | |||||
| 10 | 08007938 | Clamp |
|
- | |||||
| 11 | 5308008058 | Glass-inner |
|
- |
