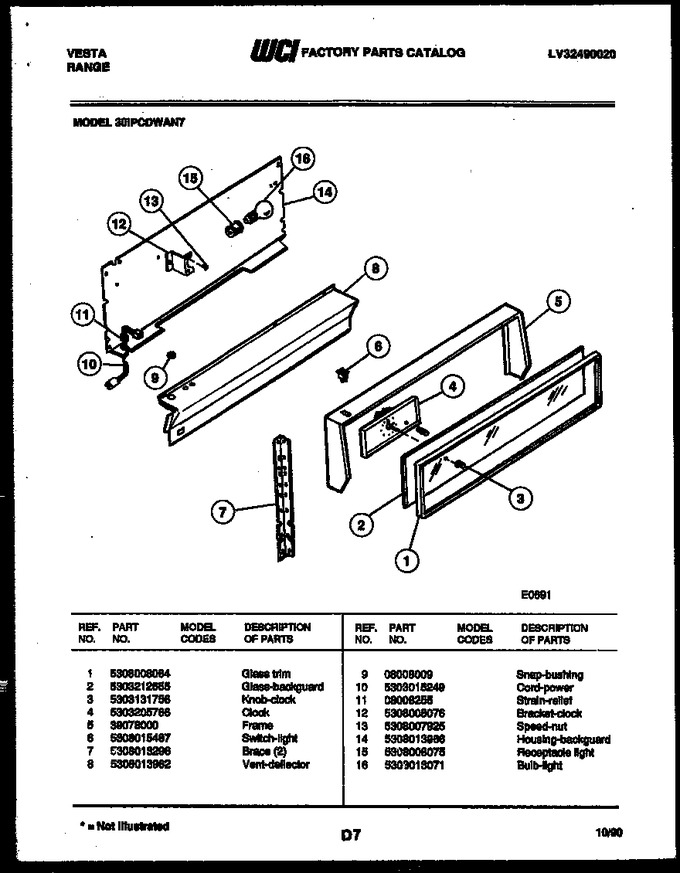

02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308008064 | Glass-trim |
|
- | |||||
| 2 | 5303212655 | Glass-backguard |
|
- | |||||
| 3 | 5303131756 | Knob - Clock |
|
- | |||||
| 4 | 5303205766 | Clock |
|
- | |||||
| 5 | 39078000 | Frame |
|
- | |||||
| 6 | 5308015487 | Switch - Light |
|
$ 61.43 | |||||
| 7 | 5308013296 | Brace (2) |
|
- | |||||
| 8 | 5308013962 | Vent-deflector |
|
- | |||||
| 9 | 08008009 | Bushing,snap |
|
- | |||||
| 10 | 5303015249 | Cord - Power |
|
- | |||||
| 11 | 08008255 | Strain - Relief |
|
- | |||||
| 12 | 5308008076 | Bracket - Clock |
|
- | |||||
| 13 | 5308007925 | Speed - Nut |
|
- | |||||
| 14 | 5308013966 | Housing - Backguard |
|
- | |||||
| 15 | 5308008075 | Receptacle Light |
|
- | |||||
| 16 | 40A15 | Bulb-light (Replaces: 5303013071) |
|
Immediately | $ 1.98 |
