1 5308007974 Pressure Regulator Special Order $ 309.02

2 5308013906 Manifold-pipe Appelez-nous -
3 3131856 Bar-slide Appelez-nous -
4 5308013926 Thermostat Appelez-nous -
5 5303131061 Baffle-oven Burner Appelez-nous -
6 5303202752 Burner-oven Special Order $ 26.83

7 5303009495 Tube - Feed Appelez-nous -
8 5303131064 Nut-3/8 Loxit Appelez-nous -
9 5308007985 Terminal Block Appelez-nous -
10 3131088 Cover - Oven Safety Valve Appelez-nous -
11 08008051 Bushing - Nylon Snap Appelez-nous -
12 3131069 Support-oven Safety Valve Appelez-nous -
13 5308009419 Valve-safety Special Order $ 232.67

14 12400035 Ignitor - Oven   (Replaces: 5308009420) In-Stock Immediately $ 60.44

15 5303131859 Cam Valve (4) Appelez-nous -
16 3205761 Valve-top Burner (4) Appelez-nous -
17 5303131094 Switch - Micro Appelez-nous -
18 5303131096 Spring - Slide Bar Appelez-nous -
19 3203964 Support - Top Burner Appelez-nous -
20 3207970 Ignitor-top Burner 36`` Appelez-nous -
21 5303131079 Burner,top ,rear Special Order $ 129.78

22 5303131080 Burner-top Front Special Order $ 76.13

23 5303131099 Valve-shut Off Appelez-nous -
24 08007979 Nut - Wing Appelez-nous -
4A 5300009126 Clip Appelez-nous -

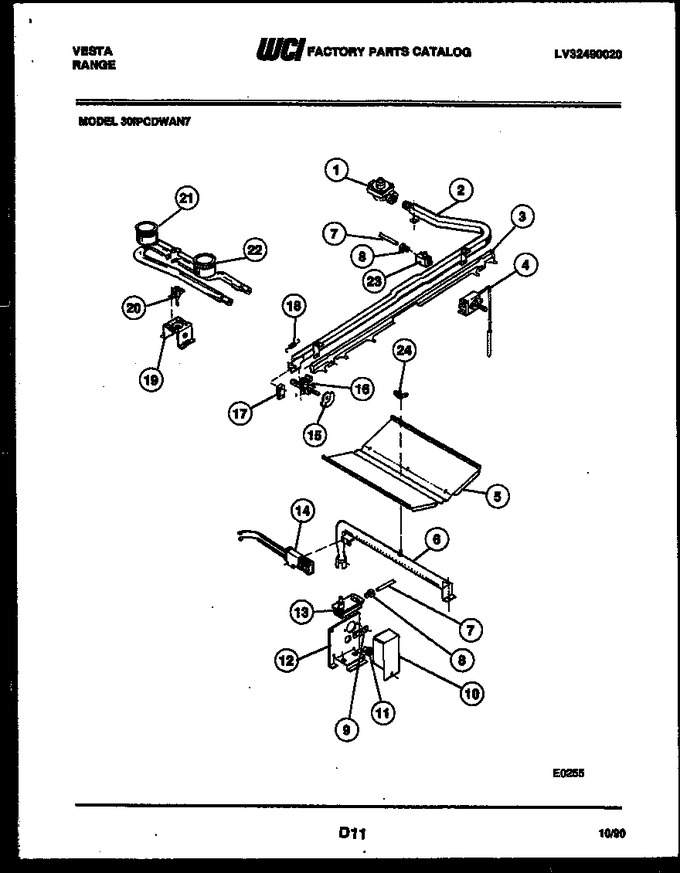

    View Diagram in Separate Window     Print Icon   Print Part List
