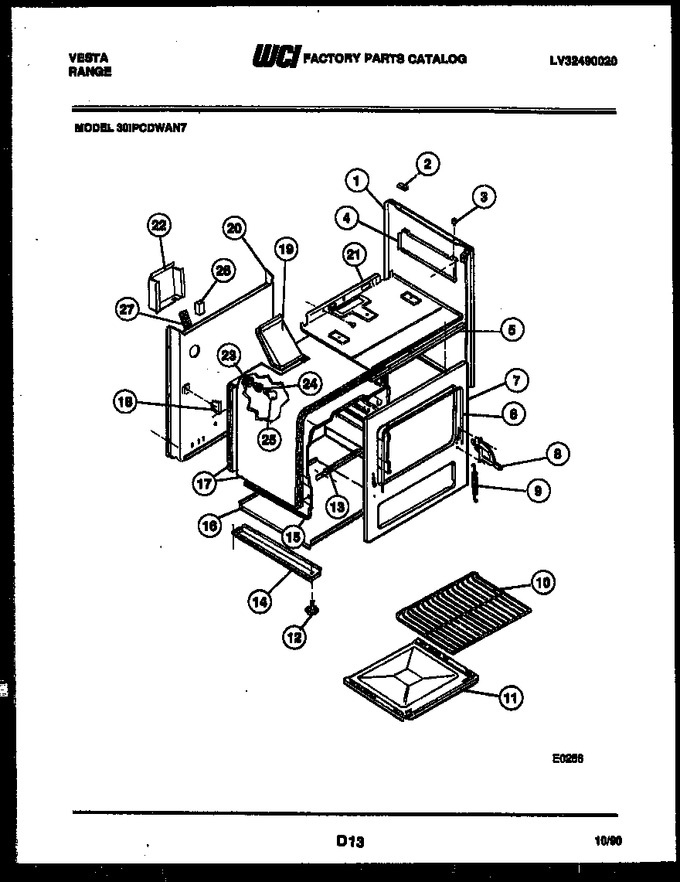

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303051061		Panel-side (white)		Appelez-nous	-
2	3205587		Grommet-top Rear (2)		Appelez-nous	-
3	3051063		Grommet-top Frnt (2)		Appelez-nous	-
4	5303131053		Shield-heat Rh		Appelez-nous	-
5	3131811		Support Cntrl. Pnl		Appelez-nous	-
6	5308008022		Seal-door				$ 124.89
7	3205578		Frame - Front		Appelez-nous	-
8	5303204670		Hinge-door Rh		Appelez-nous	-
9	5308008028		Spring (2)		Appelez-nous	-
10	5303015714		Rack (2)		Appelez-nous	-
11	3018282		Panel - Bottom		Appelez-nous	-
12	318175510		Screw-levelling (4)   (Replaces: 5303210257)			Immediately	$ 24.26
13	3131038		Support-ov Btm		Appelez-nous	-
14	5303210255		Base Rail Rh		Appelez-nous	-
15	3018709		Liner-side Rh		Appelez-nous	-
16	3011645		Bottom-oven		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3051096		Support-rear (2)		Appelez-nous	-
19	3017173		Vent - Flue		Appelez-nous	-
20	5303013340		Back-main		Appelez-nous	-
21	3017174		Burner-box Btm		Appelez-nous	-
22	08013953		Cover-spark Module		Appelez-nous	-
23	3051511		Cup, Oven Light				$ 60.22
24	5303009410		Receptacle-oven Light		Appelez-nous	-
25	5303051082		Bulb-light		Appelez-nous	-
26	5303209931		Spark Module		Appelez-nous	-
27	3131046		Channel Main Back		Appelez-nous	-
14A	5303210256		Base Rail Lh		Appelez-nous	-
15A	3018710		Liner-side Lh		Appelez-nous	-
15B	3018713		Liner-top		Appelez-nous	-
15C	3018712		Liner-back		Appelez-nous	-
17A	3017172		Insulation - Back		Appelez-nous	-
21A	3934059		Anti - Tip Bracket (non-illustrated)		Appelez-nous	-
21B	3131791		Clip B/s Corner (non-illustrated)				$ 19.01
4A	5303131054		Shield-heat Lh		Appelez-nous	-
8A	5303204672		Hinge-door Lh		Appelez-nous	-
