SELECT A DIAGRAM

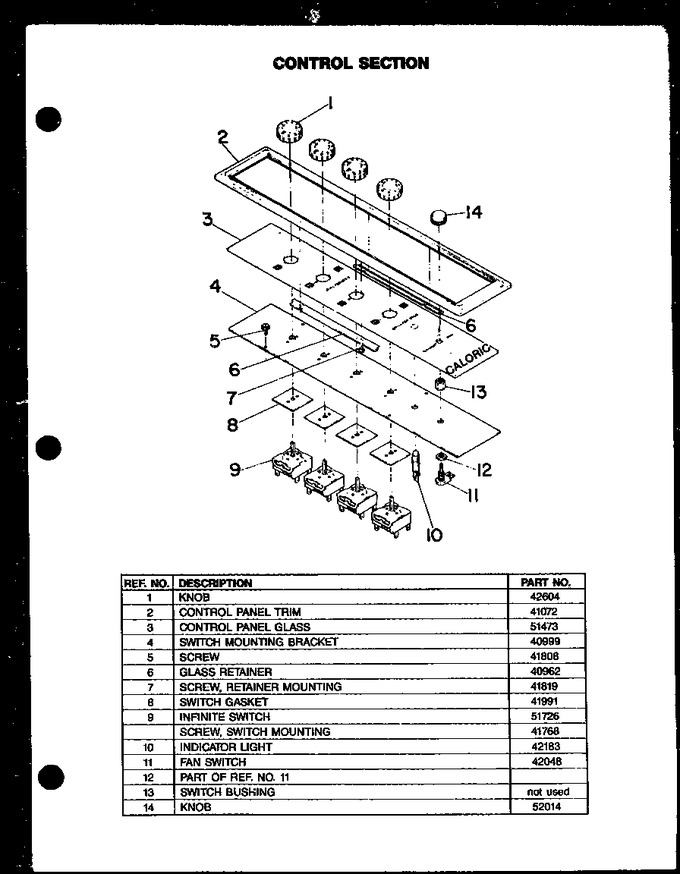

01 - Control Section
02 - Cooktop Module Ked 305-25
03 - Glass - Ceramic Module Ked 307-26
04 - Page 1
05 - Page 6
06 - Ventilation Section
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0042604 | Knob 2500 Min |
|
- | |||||
| 2 | Y0041072 | Control Panel (brushed Black) |
|
- | |||||
| 3 | 0051473 | Glass, Control Panel |
|
- | |||||
| 4 | 40999 | Switch Mounting Bracket |
|
- | |||||
| 5 | Y41808 | Screw |
|
- | |||||
| 6 | Y0040962 | Glass Retainer Ket595-590 |
|
- | |||||
| 7 | 41819 | Screw-glass Retainer |
|
- | |||||
| 8 | Y0041991 | Switch Gasket Xet-490 |
|
- | |||||
| 9 | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 | ||||
| 9 | Y0051726 | Infinite Switch |
|
- | |||||
| 10 | Y0042183 | Indicator Light |
|
- | |||||
| 11 | 0042048 | Switch, Rotary-10a,120v |
|
- | |||||
| 12 | Y00000000 | See Note Part Of Ref. No. 11 |
|
- | |||||
| 13 | Y00000000 | See Note Switch Bushing -- (not Used) |
|
- | |||||
| 14 | 0052014 | Knob, Fan |
|
- |
