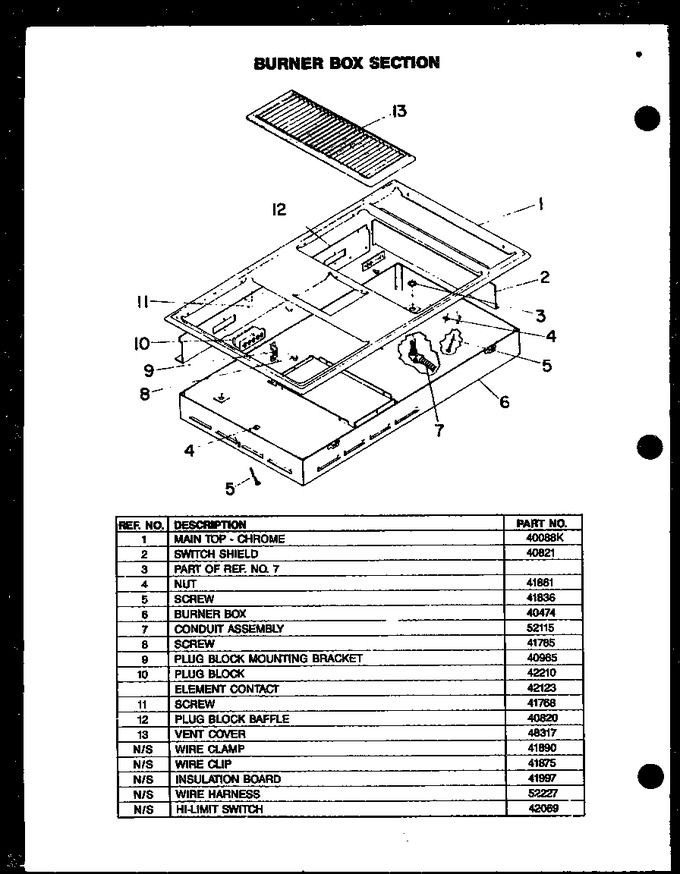

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	40088K		Main Top - Chrome		Appelez-nous	-
2	Y0040821		Switch Shield Et-590 595		Appelez-nous	-
3	Y00000000		See Note Part Of Ref. No. 7		Appelez-nous	-
4	0041861		Nut 1/4-20 Sq. Et590 595		Appelez-nous	-
5	Y0041836		Screw 1/4-20-4`` 590 595		Appelez-nous	-
6	0040474		Burner Box W/a W/vent Ket595		Appelez-nous	-
7	4L450		Belt   (Replaces: 52115)			Immediately	$ 21.00
8	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
9	Y0040965		Plug Block Mtg Brkt Et590 595		Appelez-nous	-
10	Y0042123		Element, Contact-module Top		Appelez-nous	-
10	Y0042210		Plug Block Modular Top		Appelez-nous	-
11	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
12	0040820		Plug Block Baffle Et590 595		Appelez-nous	-
13	Y0048317		Cover, Vent Brushed Black		Appelez-nous	-
NI	Y0041890		Tie-elect.		Appelez-nous	-
NI	Y0052227		Wire Harness		Appelez-nous	-
NI	0042069		Thermostat -upper Oven		Appelez-nous	-
NI	Y0041997		Insulation Board		Appelez-nous	-
NI	Y0041875		Wire Clip		Appelez-nous	-
