01 - Control Section


02 - Cooktop Module Ked 305-25


03 - Glass - Ceramic Module Ked 307-26


04 - Page 1


05 - Page 6

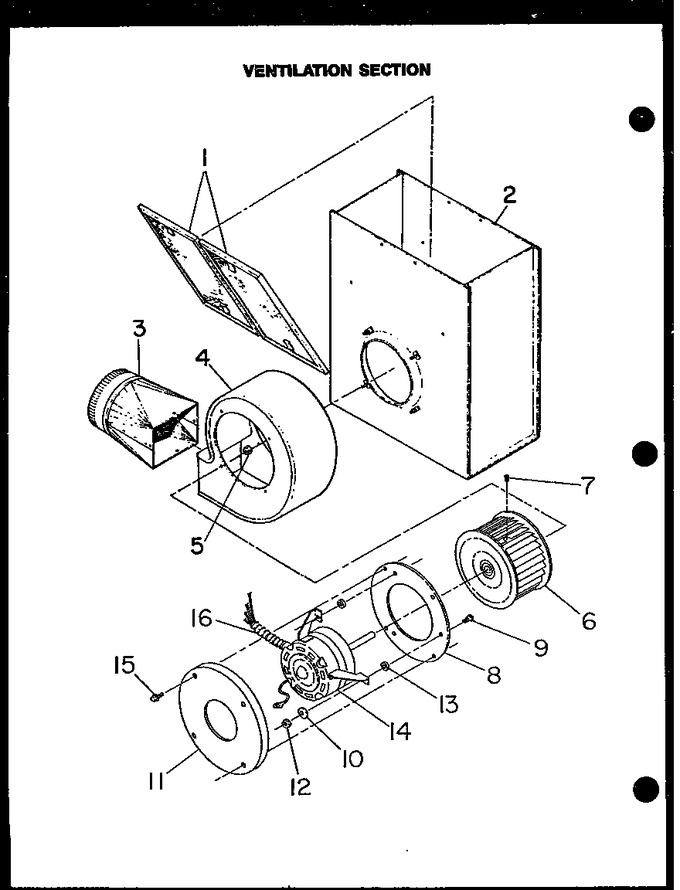

06 - Ventilation Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RHF0518		Filter Exhaust Ket595   (Replaces: Y0042024)				$ 17.21
2	Y0059562		Orifice Assy.		Appelez-nous	-
2	59560B		Plenum		Appelez-nous	-
3	59493		Transition-6``		Appelez-nous	-
4	41093		Fan Scroll		Appelez-nous	-
5	0041862		Lock-nut Nylon Ket595		Appelez-nous	-
6	Y0042752		Fan Wheel Ket595		Appelez-nous	-
7	Y00000000		See Note Part Of Ref. No. 6		Appelez-nous	-
8	59470		Barrier,moisture		Appelez-nous	-
9	0098549		Bolt, Shoulder		Appelez-nous	-
10	0041933		Washer K		Appelez-nous	-
11	59471		Cover, Motor		Appelez-nous	-
12	M0282009		Nut   (Replaces: Y0097885)				$ 12.06
13	0041981		Rubber Grommet		Appelez-nous	-
14	Y0059502		Kit, Fan Motor		Appelez-nous	-
15	Y41808		Screw		Appelez-nous	-
15	WP8281227		Tapng Scrw 8 32x3/8 Hex Hd   (Replaces: Y0041792)				$ 9.40
16	0042115		Conduit (3/8 X 18)		Appelez-nous	-
16	0042808		Control Panel Glass Do750 862		Appelez-nous	-
NI	0059569		Gasket, Motor Mtg		Appelez-nous	-
NI	0059120		Spacer, Motor Cover		Appelez-nous	-
NI	Y0042079		Connector 3/8`` 90``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
