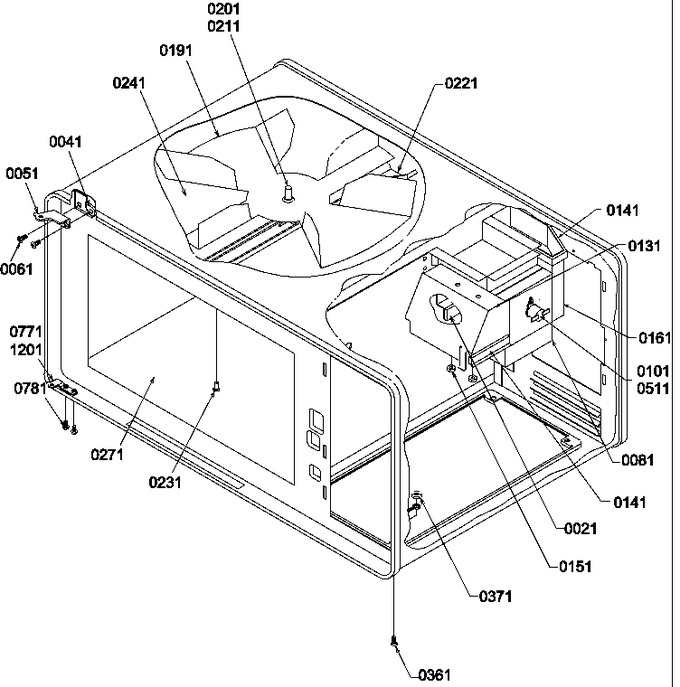

01 - Cavity
02 - Controls/blower
03 - Light/back Cover/door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 21 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 41 | 45010P01 | Plate Nut |
|
- | |||||
| 51 | 45009P01 | Brkt Top |
|
- | |||||
| 61 | 5147-AA | No.6 Flat Hd Machine Screw |
|
- | |||||
| 101 | M0251717 | Screw |
|
- | |||||
| 131 | 3000004301 | Front Air Duct |
|
- | |||||
| 141 | A3030302 | Gasket |
|
- | |||||
| 151 | 5014-J | Ia 5mm Flange Whiz-lk Nut (25) |
|
- | |||||
| 161 | 45766P01 | Rear Air Duct 1400utc |
|
- | |||||
| 191 | 10825902 | Kit, Stirrer Blade |
|
- | |||||
| 201 | M2D678 | Kit, Stirrer Insert |
|
- | |||||
| 211 | 38321P01 | Ball |
|
- | |||||
| 221 | M20D319 | Kit, Stirrer Bar |
|
- | |||||
| 231 | 5524122001 | Plastic Fastener |
|
- | |||||
| 241 | 3010017901 | Stirrer Cover M45d50 |
|
- | |||||
| 271 | M50D45 | Shelf Kit |
|
- | |||||
| 361 | 5146-FF | Screw, No.8 Mach |
|
- | |||||
| 371 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 511 | 1751802501 | Protector,thermal 180c 25 Amp |
|
- | |||||
| 771 | 45179P01 | Hinge Asy |
|
- | |||||
| 781 | 5149-C | No.8-32 Pan Hd Mach Scr (25) |
|
- | |||||
| 1201 | 45540P01 | Shim-hinge |
|
- |
