01 - Cavity


02 - Controls/blower


03 - Light/back Cover/door

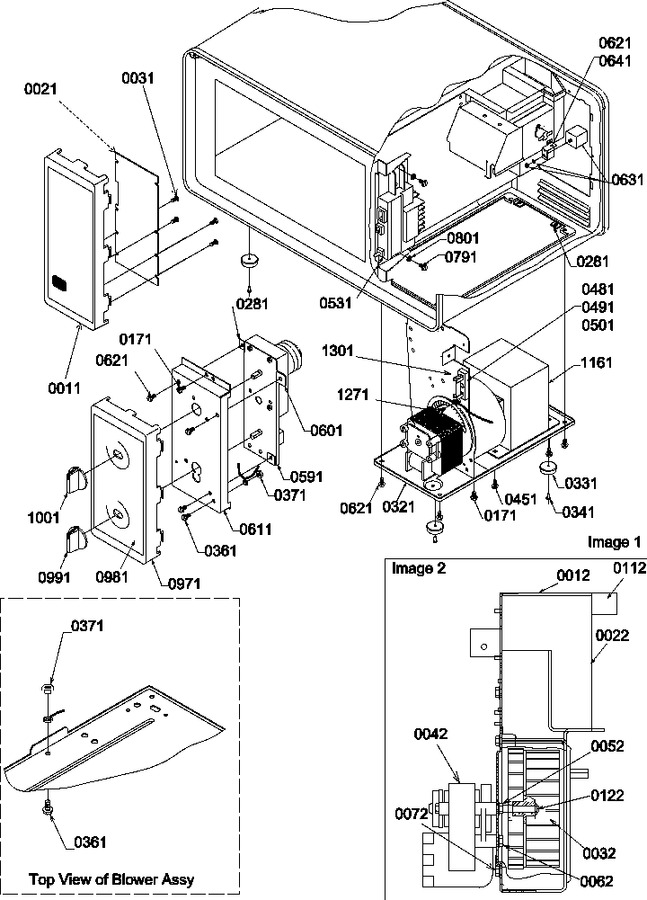

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10825702		Brkt-blower		Appelez-nous	-
22	M65D330		Blower Housing Kit		Appelez-nous	-
32	M35D51		Blower Wheel Kit		Appelez-nous	-
42	M12D105		Blower Motor Kit		Appelez-nous	-
52	WP488130		Nut   (Replaces: M0282007)				$ 6.27
62	5078-CC		Screw		Appelez-nous	-
72	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
112	A3030302		Gasket		Appelez-nous	-
122	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
171	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
281	42365P01		U-clip		Appelez-nous	-
321	R0163282		Panel, Bot Access		Appelez-nous	-
331	R0156901		Kit, Foot		Appelez-nous	-
341	A4539625		Pop Rivet		Appelez-nous	-
361	5146-FF		Screw, No.8 Mach		Appelez-nous	-
371	WP488130		Nut   (Replaces: M0282007)				$ 6.27
451	5018-JJ		No.10 T X 3/8`` Screw		Appelez-nous	-
481	30928P01		Fuse Blk .250 Term, 40 Deg Tab		Appelez-nous	-
491	A4539601		Pop Rivet		Appelez-nous	-
501	M0805106		Fuse, 10 Amp				$ 3.70
531	R0163285		Switch, Interlock		Appelez-nous	-
591	2020003501		Timer Combination 50h M22d60		Appelez-nous	-
601	M0288120		Speed Nut		Appelez-nous	-
611	3000030001		Mounting Plate M7x65		Appelez-nous	-
621	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.26
631	B5717801		Line Filter Xx		Appelez-nous	-
641	12102701		Brkt-line Filter		Appelez-nous	-
791	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.20
801	Y00000000		See Note No.8 Flat Washer		Appelez-nous	-
971	M7X62		Dec Panel Asy Kit		Appelez-nous	-
981	3131003202		Assy, Deco Panel		Appelez-nous	-
991	3010017502		Knob Timer Bottom		Appelez-nous	-
1001	3010017501		Knob Timer Top		Appelez-nous	-
1161	10788608		Transformer-hv		Appelez-nous	-
1271	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
1301	10966602		Gasket, Neoprene		Appelez-nous	-
