SELECT A DIAGRAM

01 - Cavity


02 - Controls/blower

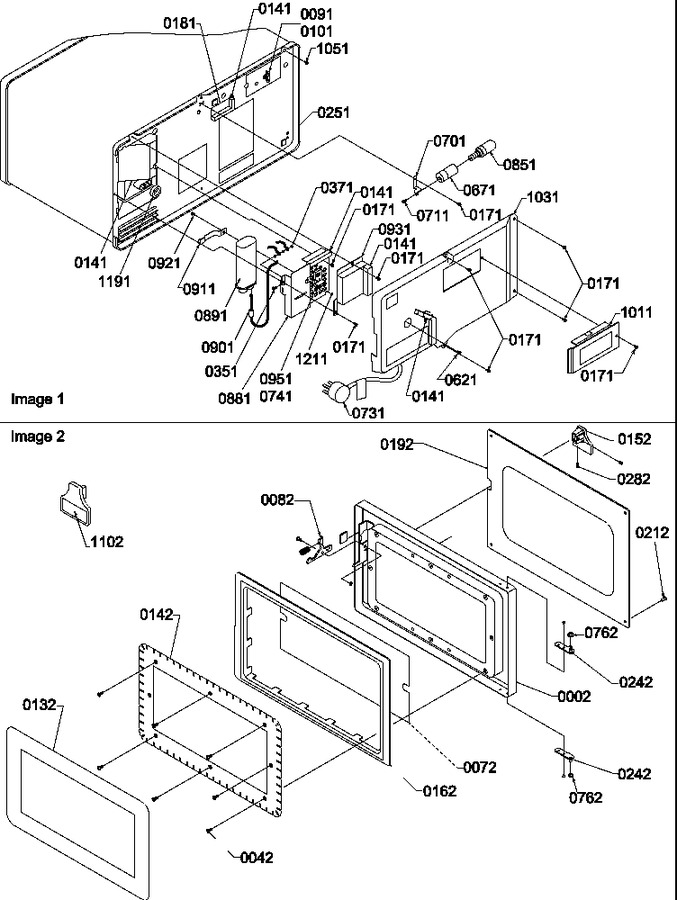

03 - Light/back Cover/door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	R0163248		Door Back		Appelez-nous	-
42	WP8281236		No.8 Ab X 3/8`` Screw   (Replaces: 5149-V)				$ 6.80
72	M51D64		Outer Window Kit		Appelez-nous	-
82	R0163249		Door Hook Kit		Appelez-nous	-
91	B5795305		Fuse, Thermal		Appelez-nous	-
101	M0251717		Screw		Appelez-nous	-
132	R0163294		Kit, Middle Window		Appelez-nous	-
141	A3030302		Gasket		Appelez-nous	-
142	R0163246		Door Plate,inner		Appelez-nous	-
152	M11D108		Handle, Door Kit		Appelez-nous	-
162	R0163247		Filler, Door		Appelez-nous	-
171	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
181	B8367703		Assy, Window Kit (light Lens)		Appelez-nous	-
192	4180028602		Window Menumstr Asy Utc		Appelez-nous	-
212	5144-UU		.187 Dia Push Rivet Blk		Appelez-nous	-
242	M8D390		Hng Plt Assy		Appelez-nous	-
251	3010004101		Shelf Support		Appelez-nous	-
282	5051032202		Set Screw No.10 X .25		Appelez-nous	-
351	M0200304		Screw		Appelez-nous	-
371	WP488130		Nut   (Replaces: M0282007)				$ 6.27
621	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.26
671	46534P01		Light Holder		Appelez-nous	-
701	46530P01		Lamp Bracket Int`l 1100		Appelez-nous	-
711	5064-CC		Screw-tf		Appelez-nous	-
731	B5669025		Cord-power		Appelez-nous	-
741	5541110001		Clamp, Power Cord		Appelez-nous	-
762	40370P01		Nylon Flat Washer		Appelez-nous	-
851	46536P01		Light Bulb (230/240 Vac)		Appelez-nous	-
881	10824903		Cover-capacitor		Appelez-nous	-
891	10804108		Capacitor		Appelez-nous	-
901	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
911	10822101		Strap, Capacitor		Appelez-nous	-
921	M0253504		Screw		Appelez-nous	-
931	44756P02		Cover Lead 1435.001		Appelez-nous	-
951	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
1011	3010012808		Door, Lamp Access		Appelez-nous	-
1031	3010010111		Cover, Rear (grey)		Appelez-nous	-
1051	Y00000000		See Note Speed-clinch		Appelez-nous	-
1102	10805806		Inlay, Door Handle		Appelez-nous	-
1191	44780P01		Toroid (arc Suppressor)		Appelez-nous	-
1211	M0282005		Nut K				$ 7.07

    View Diagram in Separate Window       Print Part List
