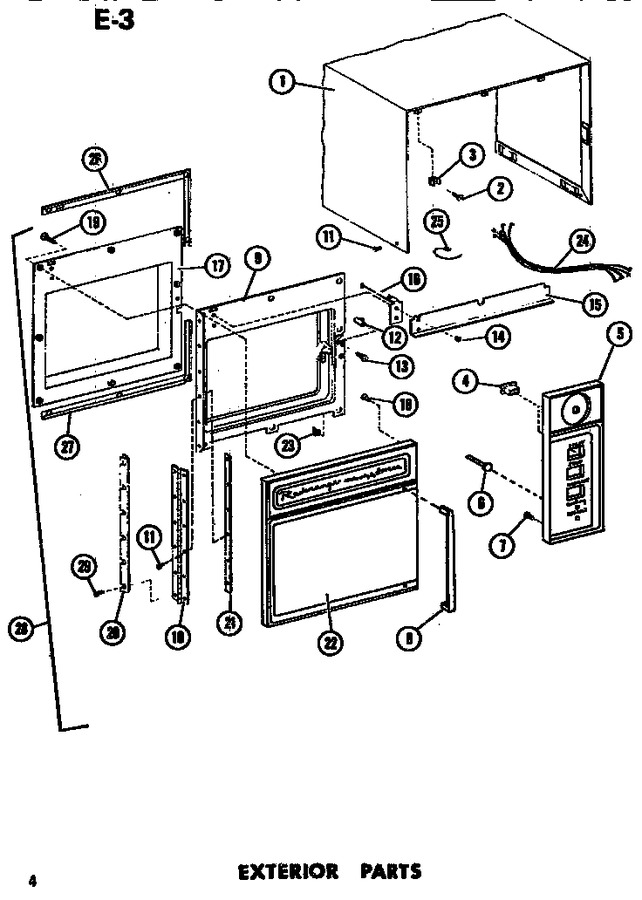

01 - Defrost


02 - Exterior


03 - Interior


04 - Interior


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7189404		Wrapper-oc		Appelez-nous	-
2	M0213516		Screw K		Appelez-nous	-
3	A3211801		Spacer, Speed Nut		Appelez-nous	-
4	C8725901		Push Button		Appelez-nous	-
5	D7231705		Esutcheon		Appelez-nous	-
6	A3245302		Light-pilot		Appelez-nous	-
7	M0253418		Screw		Appelez-nous	-
8	C8725601		Handle		Appelez-nous	-
9	D7188304		Door Ring Wld		Appelez-nous	-
10	B5742301		Door Hinge		Appelez-nous	-
11	M0230015		Screw		Appelez-nous	-
12	B5705501		Latch-door		Appelez-nous	-
13	M0228016		Screw		Appelez-nous	-
14	A4539602		Pop Rivet		Appelez-nous	-
15	C8707401		Bracket-door A		Appelez-nous	-
16	R0157117		Door Arm Assembly		Appelez-nous	-
17	D7210802		Inner Door		Appelez-nous	-
18	M0253721		Screw		Appelez-nous	-
19	M0201004		Screw		Appelez-nous	-
19	M0253717		Screw		Appelez-nous	-
20	C3695201		Support-hinge		Appelez-nous	-
21	A3223301		Tap Strip-door		Appelez-nous	-
22	D7231401		Outer Door		Appelez-nous	-
23	M0100801		Strike,door Catch		Appelez-nous	-
24	D7306002		Wiring Harness		Appelez-nous	-
25	WPW10339879		Tie K   (Replaces: M0321201)				$ 7.11
26	C8707901		Trim		Appelez-nous	-
27	C8708001		Trim		Appelez-nous	-
28	D7232102		Door Assy		Appelez-nous	-
29	M0218116		Screw		Appelez-nous	-
	NOTE:		Door Strike Is Individually Replaceable Without Replacement Of Complete Door Assembly. See Service Information For Further Information.		Appelez-nous	-
NI	M0233204		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
