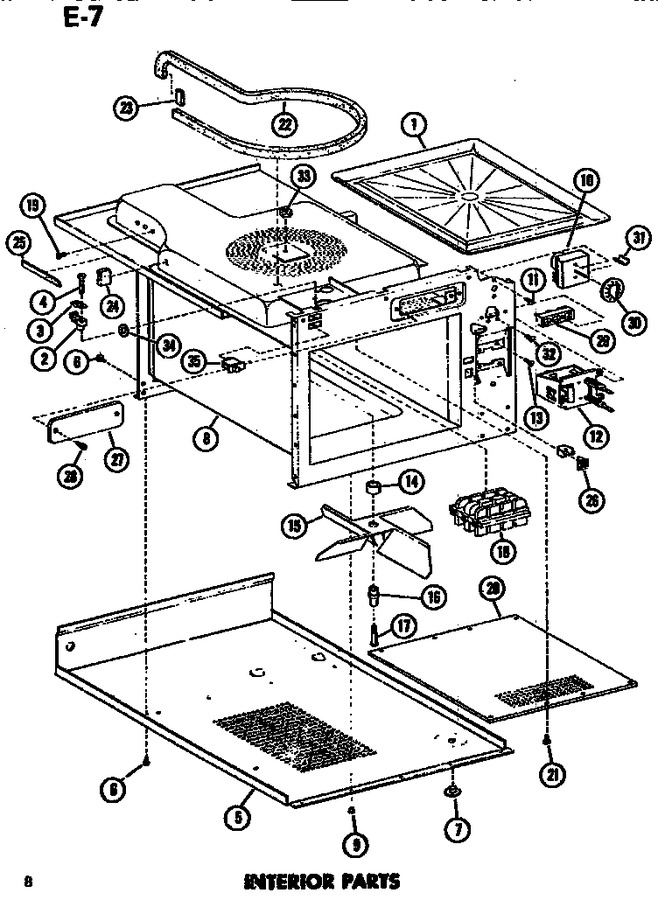

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7191101		Oven Tray		Appelez-nous	-
2	C3696903		Bushing		Appelez-nous	-
3	C3696902		Bushing		Appelez-nous	-
4	A3211102		Pin-door Stop		Appelez-nous	-
5	C3694407		Base Pan Wld		Appelez-nous	-
6	M0230015		Screw		Appelez-nous	-
7	M0310601		Plug		Appelez-nous	-
8	D7321909		Oven Cavity Wld		Appelez-nous	-
9	M0550701		Pop Rivet		Appelez-nous	-
10	C8792601		Timer		Appelez-nous	-
11	WPW10068250		Screw   (Replaces: M0202530)				$ 3.66
12	C3695503		Switch, Start And Stop		Appelez-nous	-
13	M0241205		Screw		Appelez-nous	-
14	B5704202		Bushing		Appelez-nous	-
15	C8720802		Fan Blade-stirrer		Appelez-nous	-
16	A3214801		Bearing		Appelez-nous	-
17	A3214903		Shoulder Screw		Appelez-nous	-
18	C3694501		Filter-wave Guide		Appelez-nous	-
19	M0253504		Screw		Appelez-nous	-
20	D7206602		Grease Shield K		Appelez-nous	-
21	M0130101		Clip K		Appelez-nous	-
21	M0230015		Screw		Appelez-nous	-
22	A3030308		Gasket		Appelez-nous	-
23	A3030323		Gasket, Cond. Base Pan Flange-		Appelez-nous	-
24	A3030333		Gasket (1=1ft.)		Appelez-nous	-
25	A3030302		Gasket		Appelez-nous	-
26	M0100702		Catch, Door Strike		Appelez-nous	-
27	B5700201		Access Panel		Appelez-nous	-
28	M0230814		Screw		Appelez-nous	-
29	B5677203		Terminal Block		Appelez-nous	-
30	C8704914		Knob-timer		Appelez-nous	-
31	M0117002		Retainer, Knob		Appelez-nous	-
32	M0234117		Screw		Appelez-nous	-
33	M0258301		Nut A		Appelez-nous	-
34	M0270502		Washer		Appelez-nous	-
35	B5762101		Switch		Appelez-nous	-
NI	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
NI	M0202520		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
