SELECT A DIAGRAM

01 - Defrost


02 - Exterior


03 - Interior

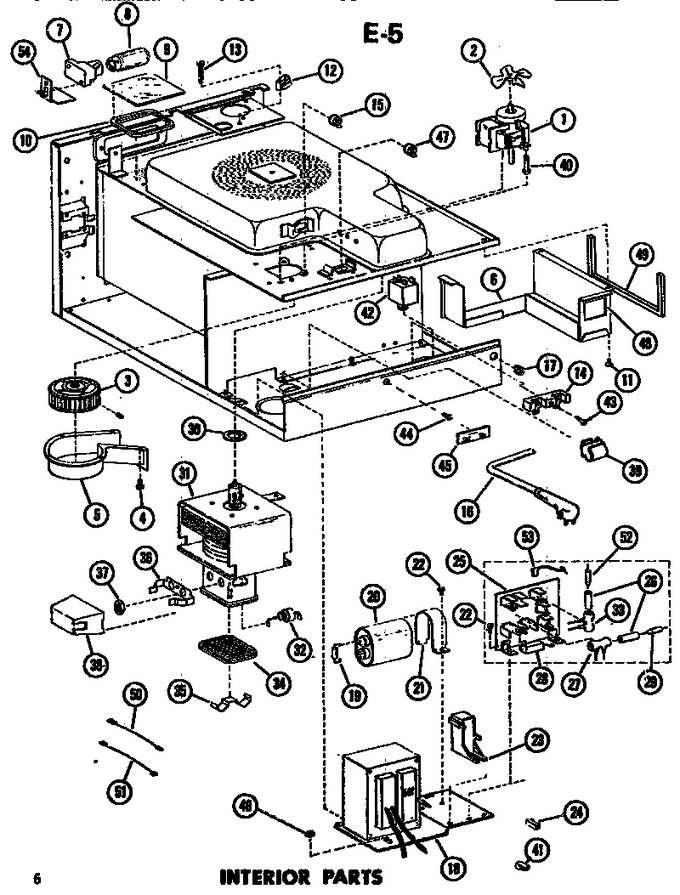

04 - Interior


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8738502		Motor 50 Cy		Appelez-nous	-
2	B5706701		Fan Blade		Appelez-nous	-
3	B5602203		Blower Wheel		Appelez-nous	-
4	M0218116		Screw		Appelez-nous	-
5	C8700101		Blower Housing		Appelez-nous	-
6	D7191802		Duct-outlet		Appelez-nous	-
7	B5764301		Socket-lamp		Appelez-nous	-
8	A3167503		Bulb-250 V		Appelez-nous	-
9	A3213701		Window-oven Light		Appelez-nous	-
10	M0275554		Sealer Ft. A / K		Appelez-nous	-
11	M0130101		Clip K		Appelez-nous	-
12	A3214202		Switch-interlock		Appelez-nous	-
13	M0227525		Screw A-k		Appelez-nous	-
14	A3259301		Terminal Block		Appelez-nous	-
15	B5665806		Thermal Cut Out		Appelez-nous	-
16	B5669001		Cord, Power		Appelez-nous	-
17	A3278802		Strain Relief		Appelez-nous	-
18	D7192002		Transformer		Appelez-nous	-
18	D7330201		Transformer		Appelez-nous	-
19	M0305202		Resistor A		Appelez-nous	-
20	R0160012		Capacitor		Appelez-nous	-
21	A3197102		Strap-capacitor		Appelez-nous	-
22	M0216517		Screw		Appelez-nous	-
23	11QBP0235		Kit, Diode   (Replaces: B5767801)				$ 15.33
24	M0325301		Insulator, Term. K		Appelez-nous	-
25	B5762201		Terminal Board		Appelez-nous	-
26	M0321701		Sleeve		Appelez-nous	-
27	M0305009		Resistor A		Appelez-nous	-
28	M0305204		Resistor		Appelez-nous	-
29	M0308102		Fuse		Appelez-nous	-
30	A3185102		Gasket, Magnetron		Appelez-nous	-
31	D7192401		Assembly, Magnetron		Appelez-nous	-
32	A3148801		Capacitor K		Appelez-nous	-
33	M0305011		Resistor, 500 Ohm, 8 Watt		Appelez-nous	-
34	B5647901		Cover Cap Box K		Appelez-nous	-
35	A3145401		Bale Strap K		Appelez-nous	-
36	B5655902		Clip K		Appelez-nous	-
37	M0281901		Hex Nut		Appelez-nous	-
38	B5656001		Shield Hv K		Appelez-nous	-
39	M0118801		Clip		Appelez-nous	-
40	M0202642		Screw		Appelez-nous	-
40	M0272605		Washer		Appelez-nous	-
41	M0325501		Insulator, Pod K		Appelez-nous	-
42	B5707601		Line Filter		Appelez-nous	-
43	M0229005		Screw K		Appelez-nous	-
44	M0251002		Screw		Appelez-nous	-
44	M0251017		Screw		Appelez-nous	-
45	B5738501		Seal K		Appelez-nous	-
46	WP487939		Nut   (Replaces: M0282015)				$ 6.95
47	B5665807		Thermal Cut-out		Appelez-nous	-
48	B5748001		Cap-duct Outlet		Appelez-nous	-
49	A3030303		Gasket (per Foot)		Appelez-nous	-
50	C3655888		Jumper Wire		Appelez-nous	-
51	C3655887		Jumper Wire		Appelez-nous	-
52	M0308106		Fuse		Appelez-nous	-
53	C3655837		Wire, Jumper, Fuse Board To Fi		Appelez-nous	-
54	B5764701		Brkt-lite Socket		Appelez-nous	-
NI	A4539609		Pop Rivet		Appelez-nous	-
NI	WPW10339879		Tie K   (Replaces: M0321201)				$ 7.11
NI	M0275121		Tape Alum		Appelez-nous	-
NI	C3655809		Jumper Wire		Appelez-nous	-
NI	C3655890		Jumper Wire		Appelez-nous	-
NI	C3655836		Jumper Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
