SELECT A DIAGRAM
01 - Defrost
02 - Exterior
03 - Interior
04 - Interior
New Model Search:

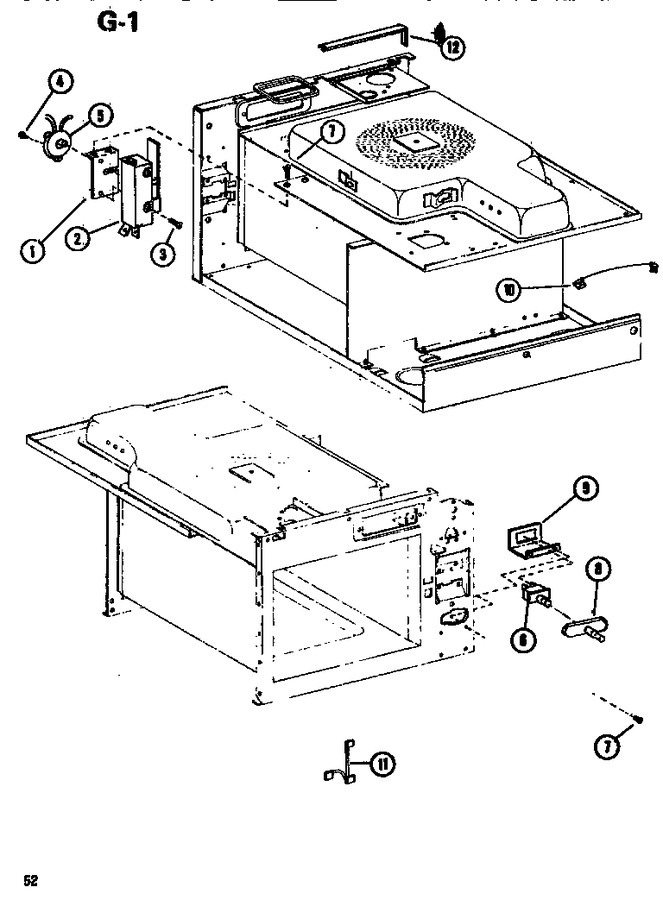

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B5761702 | Bracket-timer |
|
- | |||||
| 2 | B5761901 | Switch-limit A |
|
- | |||||
| 3 | M0202520 | Screw |
|
- | |||||
| 4 | M0230015 | Screw |
|
- | |||||
| 5 | B5699802 | Timer |
|
- | |||||
| 6 | B5762103 | Switch-defrost |
|
- | |||||
| 7 | M0216617 | Screw |
|
- | |||||
| 8 | B5773901 | Sleeve |
|
- | |||||
| 9 | B5774001 | Bracket-switch |
|
- | |||||
| 10 | D7365107 | Jumper Wire |
|
- | |||||
| 10 | D7365101 | Jumper Wire |
|
- | |||||
| 10 | D7292629 | Jumper Wire |
|
- | |||||
| 10 | D7365108 | Jumper Wire |
|
- | |||||
| 10 | C3655836 | Jumper Wire |
|
- | |||||
| 11 | D7365106 | Wire, Jumper, H.v. Transformer |
|
- | |||||
| 12 | A3030313 | Gasket (per Foot) |
|
- |
